DSC HSM2108 NEO modul expander cu 8 zone cablate

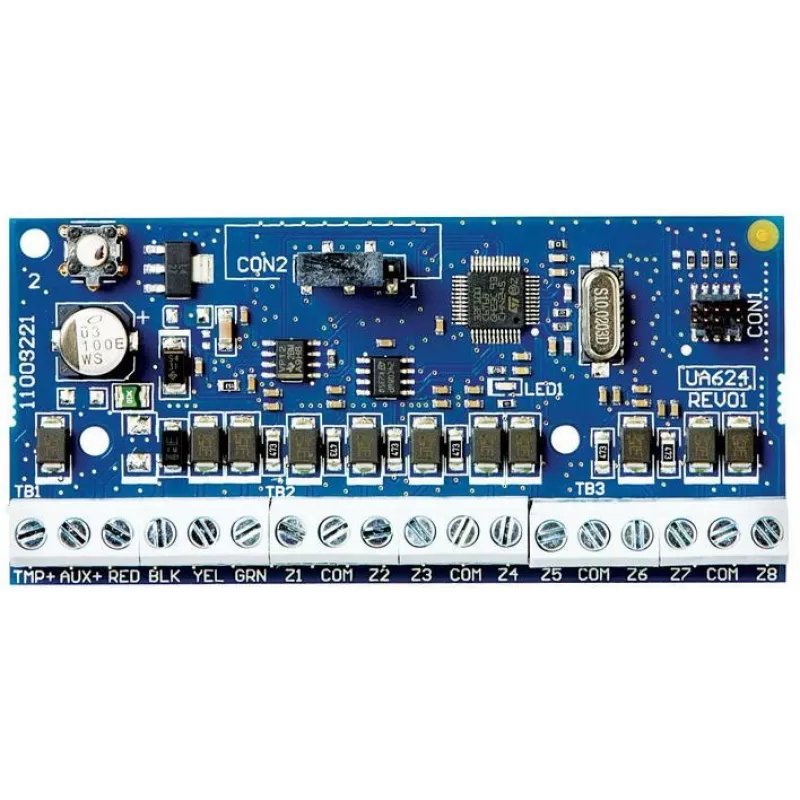

The DSC HSM2108 is an 8-zone hardwired expander module designed for the PowerSeries Neo alarm control panels. It allows you to expand your security system by adding up to 8 hardwired zones, providing flexibility for larger installations or retrofitting existing wired sensors.

Advantages

Easy to install and integrate with DSC PowerSeries Neo panels via the Corbus interface. The module supports programmable zones, enabling customized security configurations. Its compact design fits inside the control panel cabinet or a separate enclosure.

Suitable for

• Residential and commercial security systems requiring additional wired zones
• Upgrading existing DSC PowerSeries Neo systems
• Installations where wireless expansion is not feasible

Key specifications

• Module Type: Hardwired Zone Expander
• Number of Zones: 8
• Zone Type: Hardwired
• Compatibility: DSC PowerSeries Neo Control Panels (HS2016, HS2032, HS2064, HS2128)
• Connection Interface: Corbus
• Input Voltage: 10.8 - 12.5 VDC
• Standby Current Draw: 30 mA
• Maximum Current Draw: 40 mA
• Operating Temperature: -10°C to 55°C (14°F to 131°F)
• Operating Humidity: 5% to 93% RH non-condensing
• Indicators: 1 x Status LED
• Mounting: Control panel cabinet or separate enclosure
• Supervision: Corbus supervision
• Programmable Zones: Yes

Recommendations

For optimal performance, use with DSC PowerSeries Neo panels and ensure proper wiring and configuration. The module is supervised by the panel for reliable operation.
