Tester cablu de rețea VENTION KEFB0 RJ45

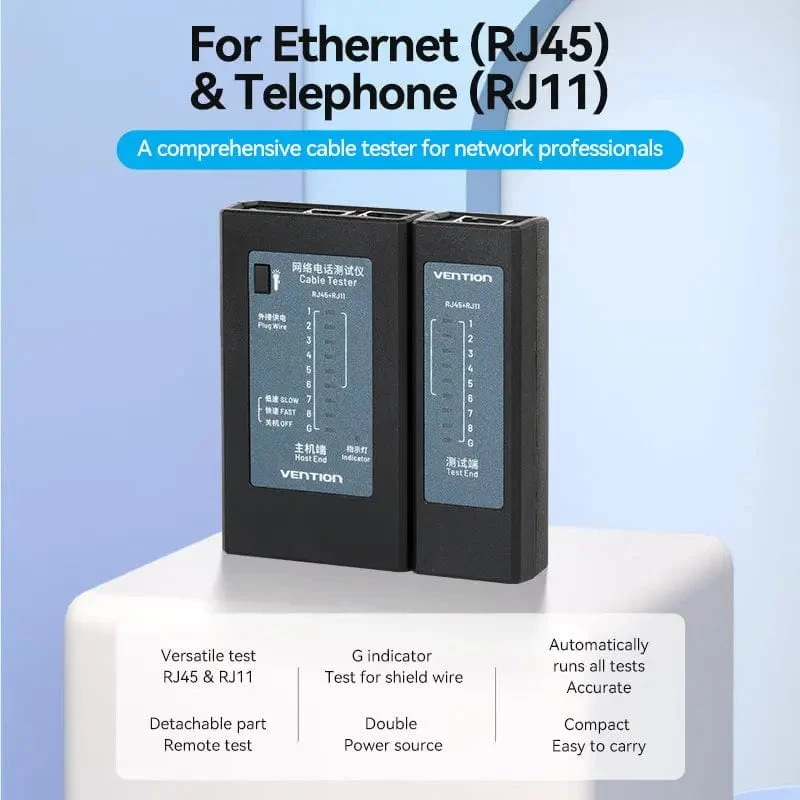

The VENTION KEFB0 is a professional network cable tester designed for quick and accurate testing of RJ45 and RJ11 cables. It supports Cat5, Cat5e, Cat6, Cat6a, and Cat7 Ethernet cables, making it an essential tool for network installers and IT professionals.

Advantages

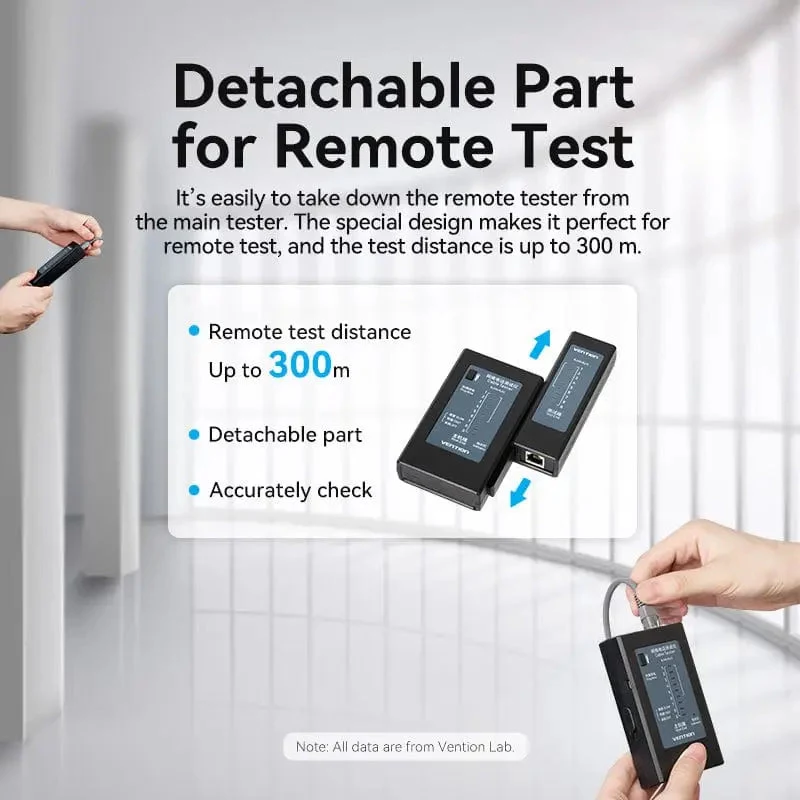

This tester features a two-part design with a main unit and a detachable remote unit, allowing for testing of installed cables up to 100 meters. LED indicators clearly show open circuit, short circuit, cross-over, straight-through, and ground connections. The automatic scan mode simplifies testing, and the low battery indicator ensures you are never caught off guard.

Suitable for

• Network technicians and installers
• IT professionals troubleshooting cable issues
• Home users setting up Ethernet networks

Key specifications

• Product Type: Network Cable Tester
• Supported Cable Types: RJ45 (8P8C), RJ11 (6P6C/6P4C/6P2C)

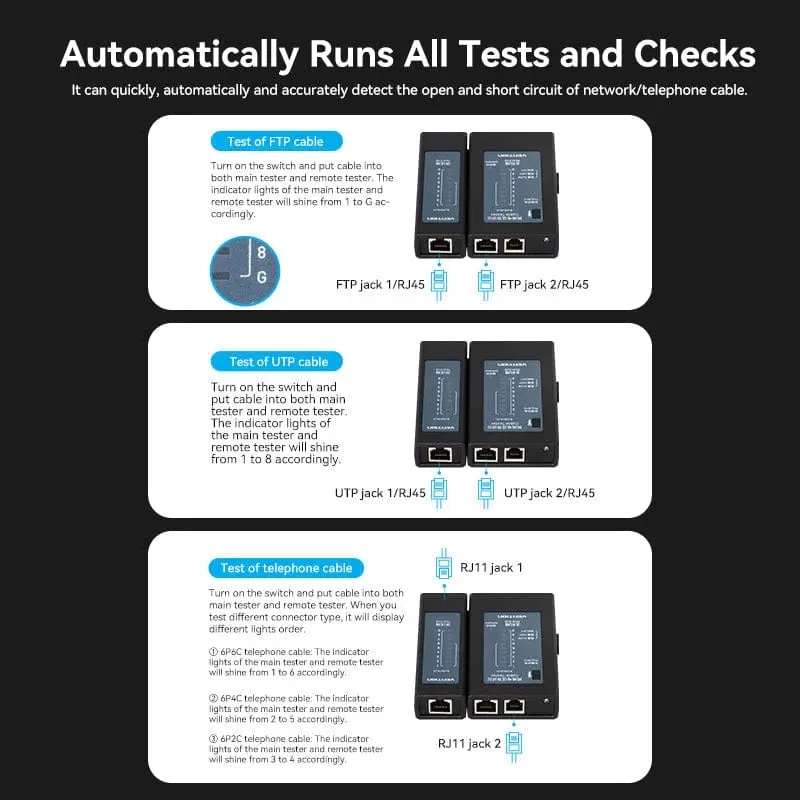

• Testing Functions: Open Circuit, Short Circuit, Cross-over, Straight-through, Ground
• Indicator Type: LED (8 for individual wires, 1 for ground)
• Power Source: 1x 9V DC Battery (not included)
• Material: High-quality ABS Plastic
• Design: Two-part (Main unit and Detachable Remote unit)
• Scan Mode: Automatic Scan
• Max Testing Distance: Up to 100 meters (328 feet)
• Cable Compatibility: Cat5, Cat5e, Cat6, Cat6a, Cat7 Ethernet Cables
• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Storage Temperature: -10°C to 60°C (14°F to 140°F)
• Low Battery Indicator: Yes
• Color: Black
• Number of Ports: 2 x RJ45, 2 x RJ11 (one set on main, one set on remote)

Recommendations

For optimal performance, use a 9V alkaline battery. This tester is ideal for verifying cable integrity in structured cabling systems.
