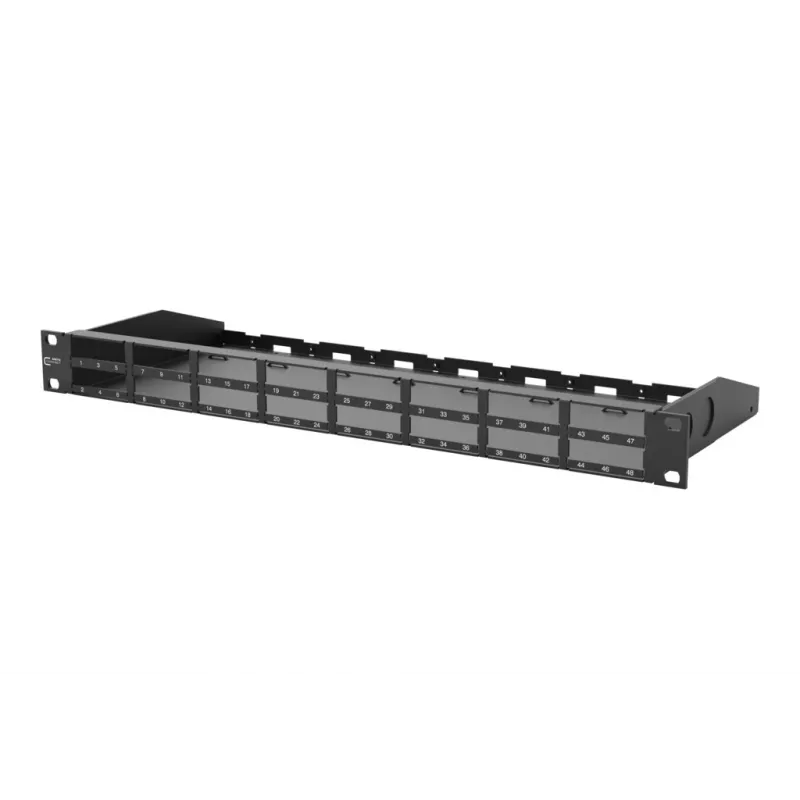

Subrack METZ CONNECT DCCS2 BGT 19 inch 1U 130D2B2B-E

Organizing modular DCCS2 components in a 19-inch rack can be a challenge without a dedicated chassis. The METZ CONNECT DCCS2 BGT 19" 1U Subrack solves this by providing a sturdy, space-efficient mounting platform for up to two DCCS2 modules.

Who is it for

Network technicians and data center managers who need to integrate METZ CONNECT DCCS2 series modules into standard 19-inch racks. Ideal for structured cabling, telecommunications, and industrial network environments where reliable, organized module installation is essential.

Main features

• 1U height (44 mm) for efficient rack space usage
• Accommodates two DCCS2 modules
• Front mounting for easy access
• Robust steel construction with black powder-coated finish (RAL 9005)
• Passive ventilation design
• Rear cable entry for clean cable management

Specifications

• Product type: Subrack / Chassis
• Rack standard: 19-inch
• Rack units: 1U
• Module slots: 2
• Module compatibility: METZ CONNECT DCCS2 series
• Mounting type: Rack mount
• Mounting position: Front
• Housing material: Steel
• Surface finish: Powder-coated
• Colour: Black (RAL 9005)
• Depth: 130 mm
• Width: 482.6 mm
• Height: 44 mm
• Application environment: Indoor, data centers, server rooms, industrial networks
• Cable entry: Rear
• Ventilation: Passive

Tips

Ensure the rack has standard 19-inch mounting rails and sufficient depth to accommodate the 130 mm chassis. When installing, secure the subrack with appropriate cage nuts and screws. For optimal airflow, leave some space above and below the unit if possible.
