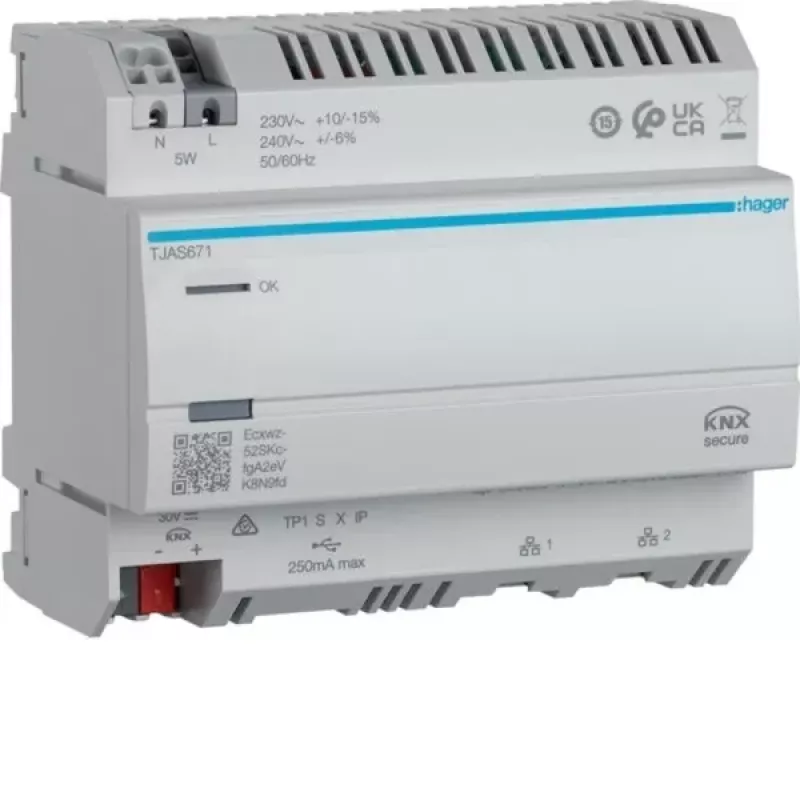

Server Smart Home Hager Domovea basic TJAS671 KNX IP Gateway

The Hager Domovea basic TJAS671 is a smart home server and KNX IP gateway that provides visualization, control, automation, and remote access for KNX installations. It supports up to 5 simultaneous IP clients and offers Ethernet and USB connectivity, with configuration via ETS and the Domovea configuration tool. The device is designed for DIN rail mounting (4 modules) and operates on 24 V DC.

Advantages

Centralized control of KNX devices, remote access capability, and support for automation scenarios. The integrated Domovea Basic software enables user-friendly visualization and control without additional licensing.

Suitable for

• Residential and commercial KNX installations requiring remote monitoring and control
• Integration of KNX systems with IP networks for visualization and automation
• Projects needing a compact DIN rail mounted gateway with USB backup

Key specifications

• Bus system: KNX
• Connectivity: Ethernet (RJ45), USB
• Power supply: 24 V DC
• Mounting: DIN rail, 4 modules
• Operating temperature: 0°C to +45°C
• Protection class: IP20
• Colour: Light grey / white
• Simultaneous IP clients: up to 5

Recommendations

Ideal for integrators seeking a reliable KNX IP gateway with built-in visualization and remote access, suitable for small to medium-sized installations.
