SATEL Detector de perdea CD-2 DG (Gri închis)

The SATEL CD-2 DG is a passive infrared (PIR) curtain detector designed for indoor use, providing a narrow detection pattern ideal for protecting windows, doors, and other vertical openings. Its compact design and dark grey housing blend discreetly into modern interiors.

Advantages

Reliable curtain detection with a 6° angle and 7.5 m range ensures precise coverage. Grade 2 security and environmental class II guarantee dependable operation in demanding conditions. Low standby current consumption (10 mA) makes it energy-efficient.

Suitable for

• Protecting windows and glass doors
• Securing narrow passages and corridors
• Perimeter detection in residential and commercial buildings

Key specifications

• Sensor Type: Passive Infrared (PIR)
• Detection Pattern: Curtain
• Detection Range: 7.5 m x 1 m
• Detection Angle: 6°
• Recommended Installation Height: 2.4 m
• Power Supply: 12 V DC (±15%)
• Standby Current: 10 mA
• Max Current: 12 mA
• Alarm Output: NC Relay, 40 mA / 16 V DC
• Tamper Output: NC Relay, 40 mA / 16 V DC
• Alarm Signaling Time: 2 s
• Warm-up Time: 30 s
• Operating Temperature: -10°C to +55°C
• Environmental Class: II (EN 50130-5)
• Security Grade: Grade 2 (EN 50131-2-2)
• Color: Dark Grey

Recommendations

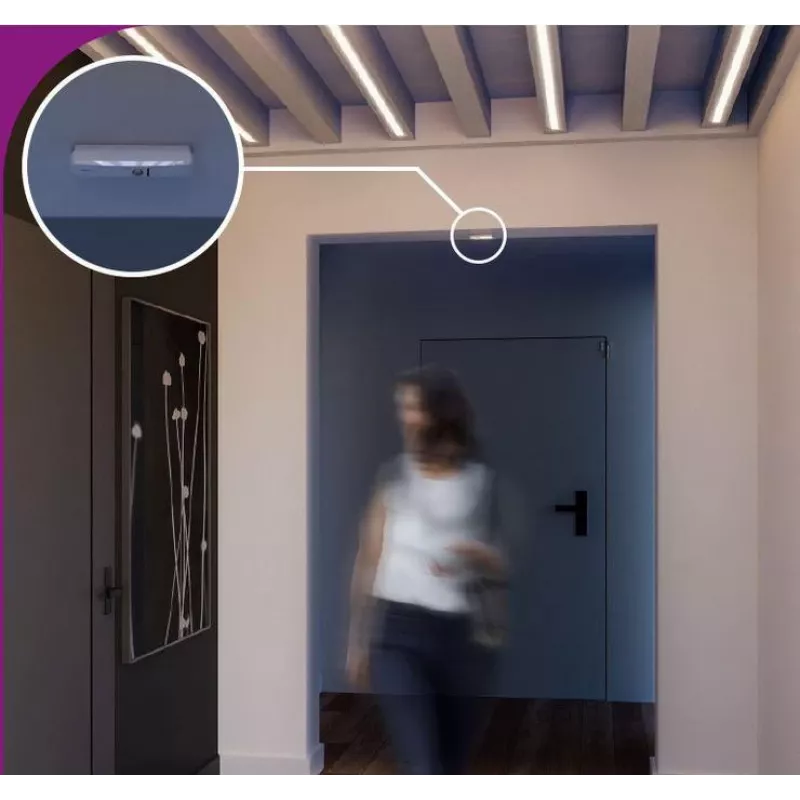

For optimal performance, install at the recommended height of 2.4 m and ensure the detection area is free from obstructions. Pair with a compatible SATEL alarm control panel for full system integration.
