Riser Qoltec PCI-E ver. 009S Plus

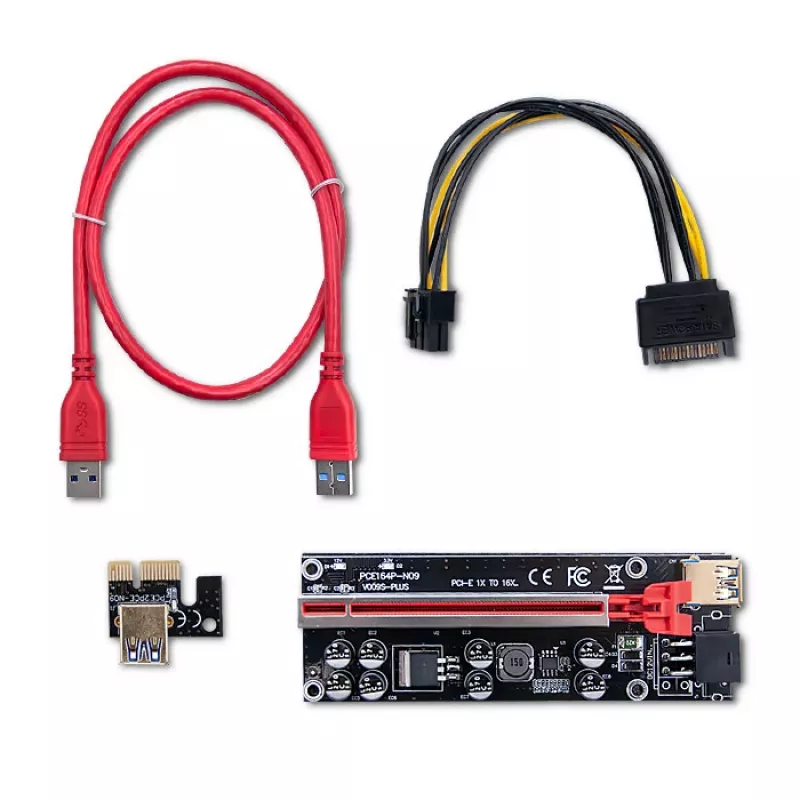

The Qoltec Riser PCI-E ver. 009S Plus is a high-performance PCI Express extension kit designed for GPU mining and PC expansion. It allows you to connect a PCI-E 16x device (e.g., graphics card) to a PCI-E 1x slot via a USB 3.0 cable, providing flexibility in positioning and improved airflow. The kit includes gold-plated contacts, solid capacitors, and multiple power input options for stable operation.

Advantages

Driverless plug-and-play installation, universal compatibility with PCI-E 1.0/2.0/3.0, and robust power delivery with overcurrent and ESD protection. The double-shielded USB cable ensures reliable data transfer.

Suitable for

• GPU mining rigs
• PC expansion where space is limited
• Test benches and development setups

Key specifications

• Interface: PCI-E 1x to 16x
• Data transfer cable: USB 3.0, 60 cm
• Power input: 12V DC via 6-pin PCI-E, SATA 15-pin, or Molex 4-pin
• Capacitors: 8x solid capacitors
• LED indicator: Power status
• Contact plating: Gold-plated
• PCB: 4-layer
• Protection: Overcurrent and ESD

Recommendations

For best performance, use a stable 12V power supply and ensure proper ventilation. The riser is driverless and works with Windows, Linux, and other operating systems.
