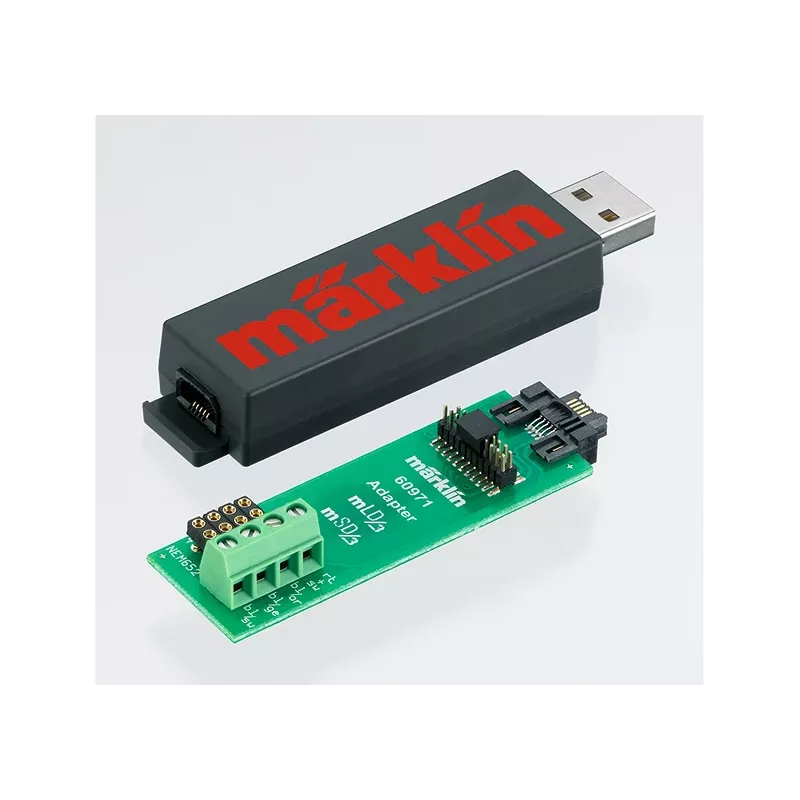

Programator de decodoare Märklin 60971

Program and configure Märklin mfx, DCC, and Motorola decoders with the Märklin Decoder-Programmer 60971. This USB-connected device works with the Märklin Decoder Tool (MDT) software for reading and writing CVs, updating firmware, and managing sound files on compatible decoders.

Overview

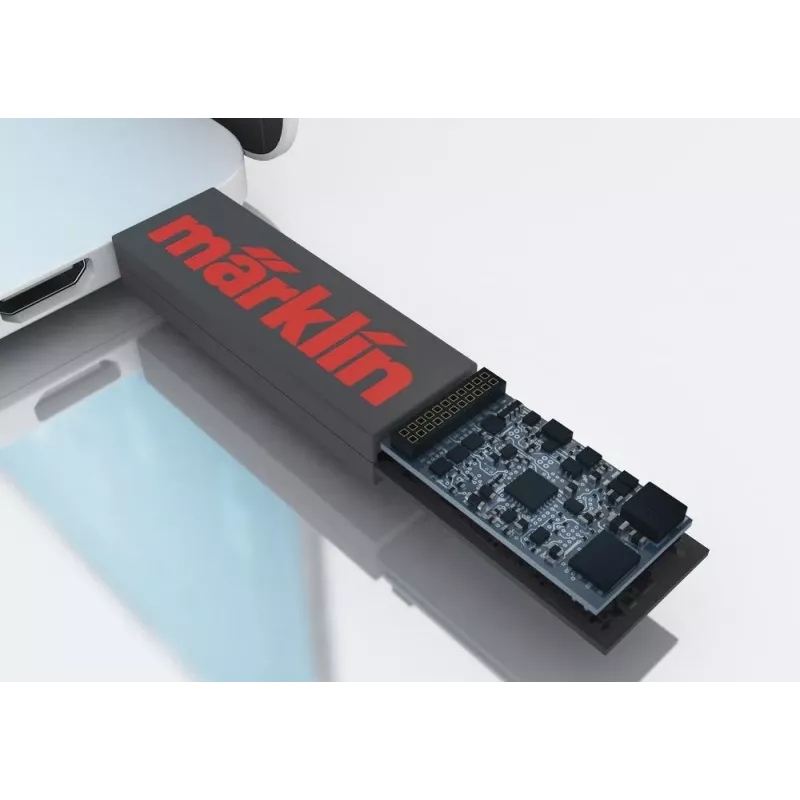

The Märklin Decoder-Programmer 60971 is a specialized tool for model railway enthusiasts who need precise control over their digital decoders. It connects to a PC via USB and provides an integrated test track output for decoder testing and parameter adjustment.

What stands out

• Supports Märklin mfx, DCC, and Motorola decoder formats
• USB connection with included cable
• Firmware update capability for compatible decoders
• Overload protection for test track output
• Compatible with Windows XP through Windows 11

Technical details

• Product type: Digital Decoder Programmer
• Supported decoder formats: Märklin mfx, DCC, Märklin Motorola
• PC connection interface: USB (Type B on device)
• Required software: Märklin Decoder Tool (MDT)
• Programming capabilities: Read and write Configuration Variables (CVs)
• Firmware update capability: Yes, for compatible Märklin decoders
• Power supply: Via USB connection from PC
• Operating system compatibility: Microsoft Windows (XP, Vista, 7, 8, 10, 11)
• Decoder connection method: Integrated test track output terminals
• Included accessories: USB connection cable
• Functionality: Decoder testing, parameter adjustment, sound file management (for sound decoders)
• User interface: Graphical user interface (via MDT software)
• Application area: Model railway digital control systems
• Target user: Model railway enthusiasts and hobbyists
• Safety features: Overload protection for test track output

Our verdict

A comprehensive programming solution for Märklin digital decoders, offering full CV control, firmware updates, and sound management through an intuitive PC interface.
