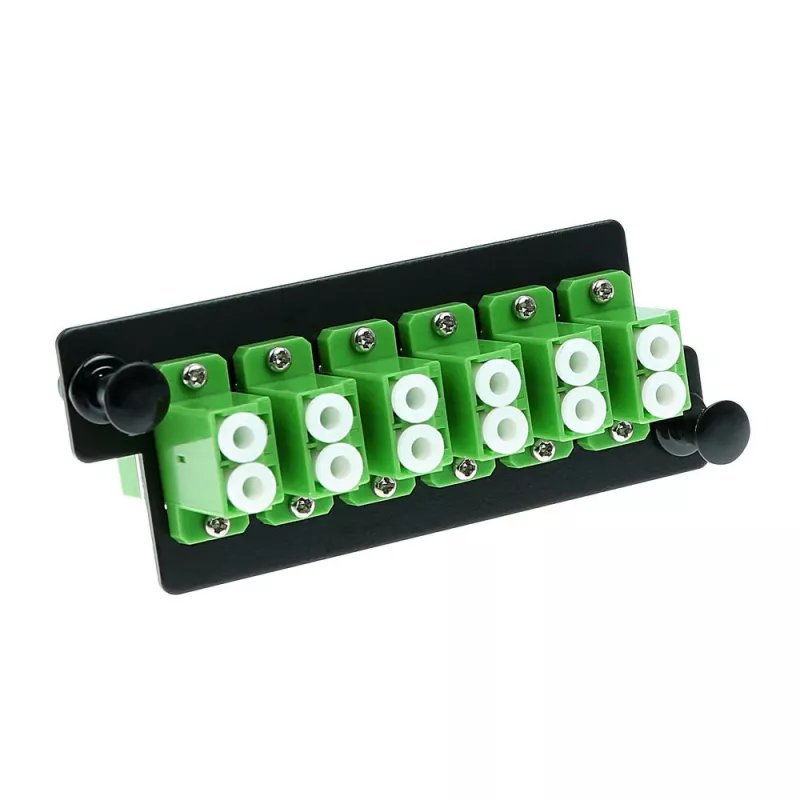

Placă adaptor ACT 6xLC duplex (12F) OS2 APC8 (FA2154)

The ACT FA2154 adapter plate stands out by consolidating six LC duplex connections into a single snap-in module, giving you a 12-fibre capacity in a compact black steel frame. Unlike loose couplers, this plate is built for structured cabling environments where density and clean cable management matter. The angled APC8 polish on every port minimises back reflections, which is critical for high-speed single-mode links.

Highlights

• 6 LC duplex ports, 12 fibres total
• OS2 single-mode fibre with APC 8° polish
• Snap-in mounting for standard patch panels and enclosures
• Black steel housing for durability
• Insertion loss below 0.3 dB, return loss above 60 dB

In daily use

Install the FA2154 into a compatible fibre panel or enclosure and connect your OS2 trunk cables. The duplex LC ports accept standard LC connectors, and the APC polish ensures stable performance for long-haul and high-power applications. The steel plate resists flexing during repeated matings, and the snap-in design keeps the plate firmly seated even in high-vibration racks.

Full specifications

• Product type: Fibre adapter plate
• Connector type: LC duplex
• Number of ports: 6 duplex (12 fibres)
• Fibre mode: Single-mode OS2
• Polish type: APC (8°)
• Housing material: Steel
• Colour: Black
• Insertion loss: < 0.3 dB
• Return loss: > 60 dB
• Operating temperature: -20°C to +70°C
• Mating durability: > 500 cycles

Final note

For high-density OS2 deployments, the FA2154 provides a reliable, low-reflection termination point that meets the demands of modern data centres and enterprise networks.
