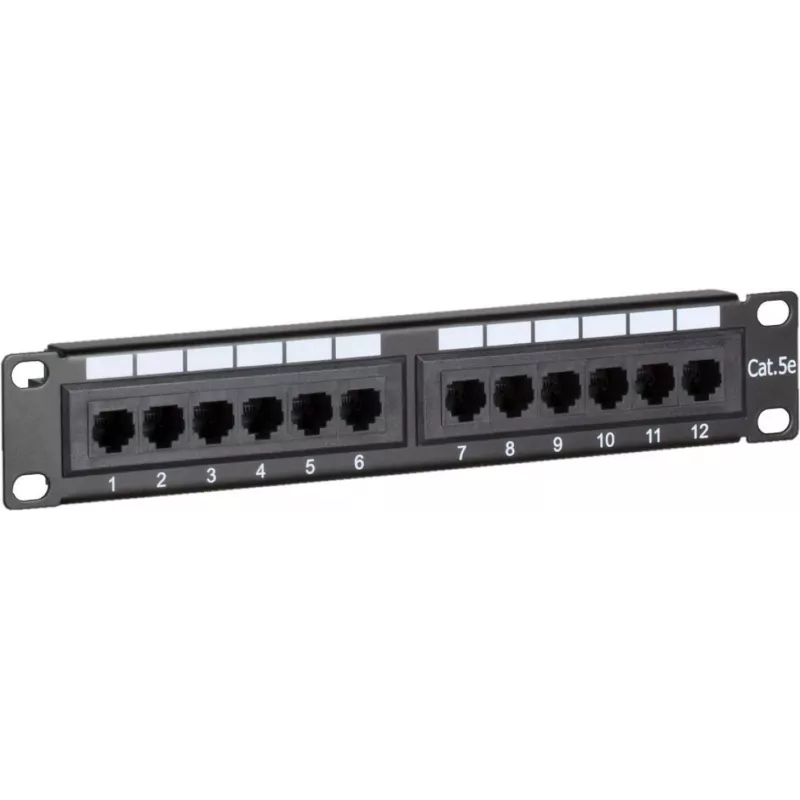

Patch panel DSIT DS-10Patch5-12UTP 10 inch 12 porturi UTP CAT 5e

Managing network cables in tight spaces often becomes a chaotic mess of tangled wires and unreliable connections. The DSIT DS-10Patch5-12UTP 10-inch 12-Port UTP CAT 5e Patch Panel solves this by providing a compact, structured termination point for your Ethernet infrastructure. Designed for 10-inch racks, this unshielded patch panel offers 12 RJ45 ports with CAT 5e performance, supporting Gigabit Ethernet speeds up to 1000 Mbps. Its steel housing and gold-plated contacts ensure durability and consistent signal quality, making it a reliable choice for small offices, home labs, and network enclosures where space is at a premium.

Who is it for

This patch panel is ideal for IT professionals, network installers, and tech-savvy homeowners who need to organize network cabling in compact 10-inch rack setups. It suits environments such as small server rooms, structured cabling projects, and edge network deployments where a full-size 19-inch panel would be excessive.

Main features

• 12 RJ45 ports on a compact 10-inch form factor, perfect for space-constrained racks.
• CAT 5e performance supporting data rates up to 1000 Mbps (Gigabit Ethernet) and 100 MHz bandwidth.

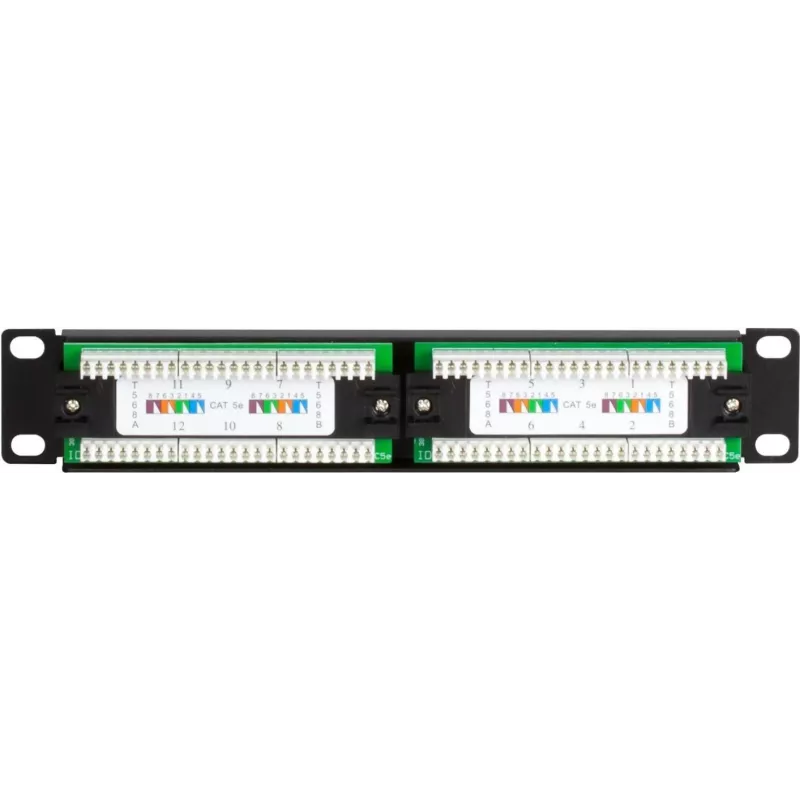

• Unshielded (UTP) design with IDC rear termination for quick and reliable punch-down connections.
• Sturdy steel housing with black finish for durability and a professional look.
• Gold-plated contacts ensure low resistance and long-term corrosion resistance.
• Supports TIA/EIA 568A/B wiring standards, compatible with standard punch-down tools.

Specifications

• Product Type: Patch Panel
• Rack Size: 10-inch
• Number of Ports: 12
• Cable Type Support: UTP (Unshielded Twisted Pair)
• Performance Standard: CAT 5e
• Front Connector Type: RJ45 Female
• Rear Termination Type: IDC (Insulation-Displacement Connector)
• Termination Standard: TIA/EIA 568A/B
• Mounting Type: Rack-mountable
• Housing Material: Steel
• Colour: Black
• Shielding: Unshielded
• Frequency Bandwidth: 100 MHz
• Supported Data Rate: Up to 1000 Mbps (Gigabit Ethernet)
• Contact Material: Gold-plated contacts
• Certifications: RoHS Compliant

Tips

To ensure optimal performance, use CAT 5e or higher grade UTP cables and maintain proper cable management behind the panel. When punching down wires, follow the same wiring standard (568A or 568B) on both ends of each run. For best results, use a quality LSA+ punch-down tool and avoid excessive untwisting of pairs.
