Modul de extindere wireless ABUS Security-Center Seco BUS BUMO60030

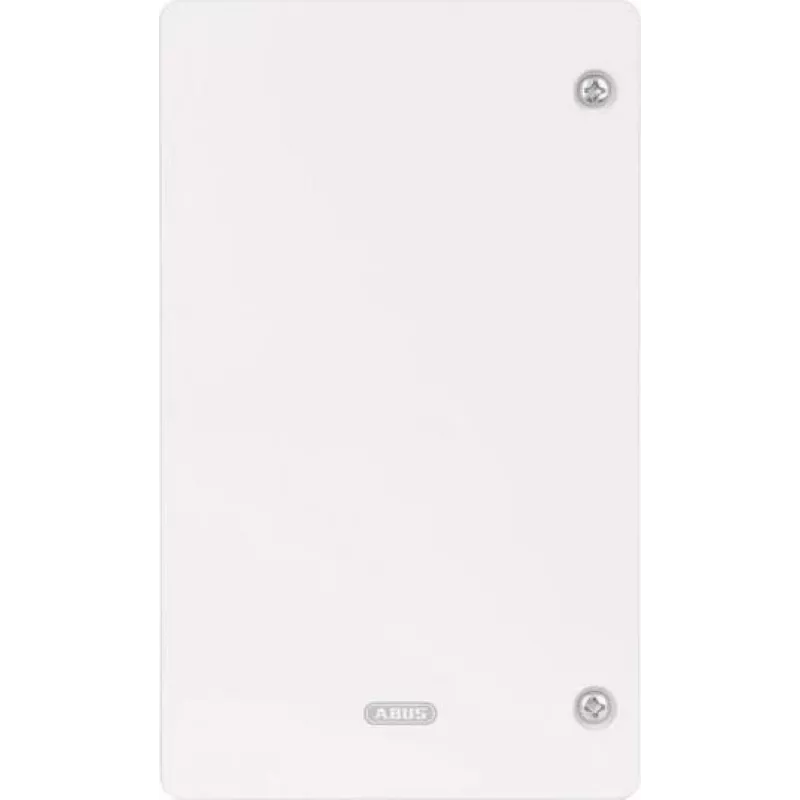

The ABUS Security-Center Seco BUS Wireless Expansion Module BUMO60030 is a high-quality wireless expansion module designed to extend the capabilities of ABUS Terxon MX/LX alarm systems. It enables the integration of up to 32 wireless zones, providing flexible and reliable security coverage for residential and commercial applications.

Advantages

This module offers encrypted wireless transmission for enhanced security, easy wall-mounting, and seamless integration via the Seco BUS interface. Its compact design and low power consumption make it an ideal choice for expanding your alarm system without complex wiring.

Suitable for

• Expanding ABUS Terxon MX/LX alarm systems with wireless zones
• Indoor installations requiring flexible zone placement
• Users seeking encrypted and reliable wireless communication

Key specifications

• Product Type: Wireless Expansion Module
• Compatibility: ABUS Terxon MX/LX Alarm Systems
• Wireless Technology: ABUS Seco BUS Wireless
• Operating Frequency: 868.6625 MHz
• Number of Wireless Zones: 32
• Bus Interface: ABUS Seco BUS
• Power Supply: Via Seco BUS
• Operating Voltage: 12 V DC
• Current Consumption: Max. 50 mA
• Wireless Range (Open Field): Up to 100 m
• Installation Location: Indoor
• Mounting Type: Wall-mounted
• Operating Temperature: -10°C to +55°C
• Relative Humidity: Max. 95% (non-condensing)
• Encryption: Encrypted wireless transmission
• Antenna Type: Integrated
• Housing Material: Plastic
• Color: White
• Max. Modules per System: 4 (for Terxon MX/LX)
• Certifications: CE

Recommendations

For optimal performance, install the module in a central location within the building and ensure the Seco BUS connection is secure. Pair with ABUS wireless detectors for a complete security solution.
