Märklin Z Ecartament 15 grade traversare 8559

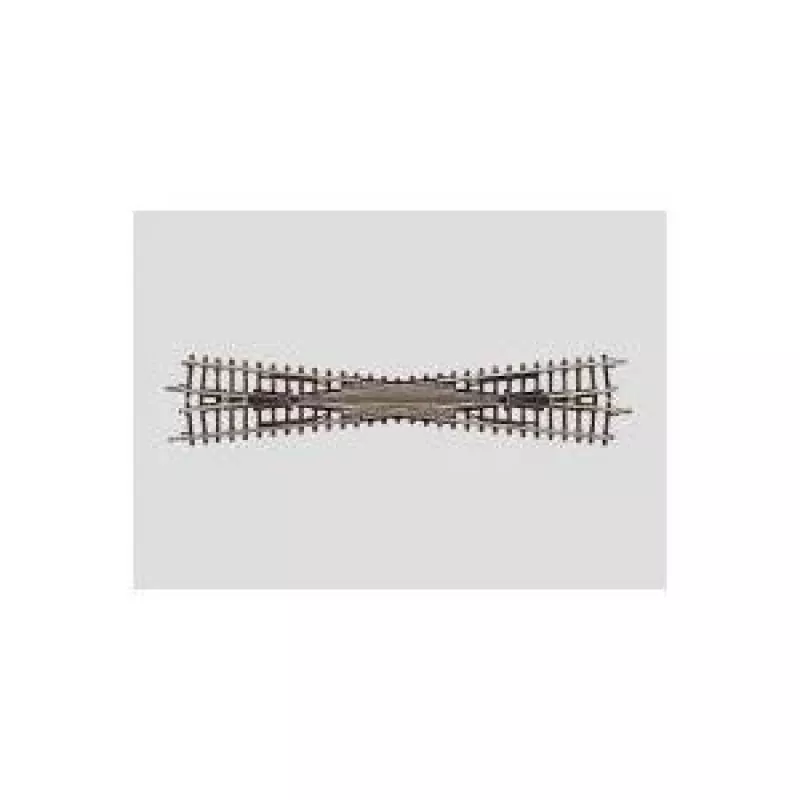

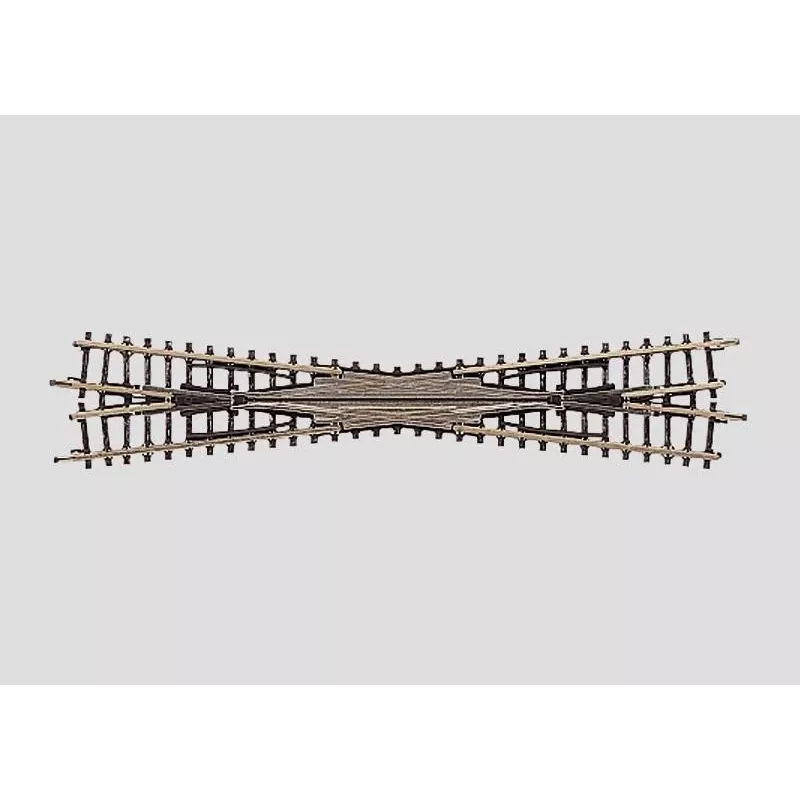

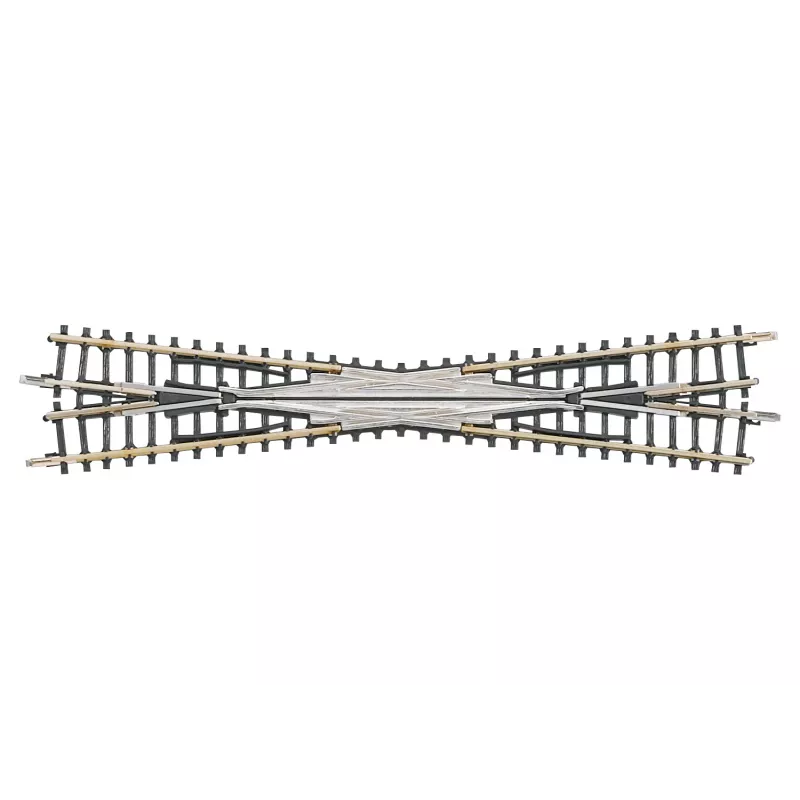

Expand your Märklin Z gauge layout with this 15-degree crossing track. When two lines need to intersect without a switch, this crossing provides a reliable and prototypical solution, allowing trains to pass over the junction smoothly.

Who is it for

This crossing is for Z gauge model railway enthusiasts who want to add operational interest to their layouts. It is suitable for layouts with intersecting routes, such as a mainline crossing a branch line, and is designed for use with Märklin Z track system.

Main features

• 15-degree crossing angle for compact intersections
• Nickel silver rails for reliable electrical conductivity and corrosion resistance
• Plastic sleepers in black, matching the Märklin Z track system
• Standard electrical properties (non-insulated) for continuous power routing
• Compatible with Märklin Z track system, including R1 curves (145 mm radius)

Specifications

• Gauge: Z Gauge
• Scale: 1:220
• Track type: Crossing
• Crossing angle: 15 degrees
• Track length: 110 mm
• Rail material: Nickel silver
• Sleeper material: Plastic
• Sleeper colour: Black
• Rail colour: Silver
• Minimum radius compatibility: R1 (145 mm)
• Product series: Märklin Z
• Recommended age: 15+

Tips

When installing the crossing, ensure that the track is laid flat and that the rails are aligned with the adjoining track sections. Use a track gauge to check the alignment and avoid derailments. For best performance, clean the rails regularly with a track cleaning rubber.
