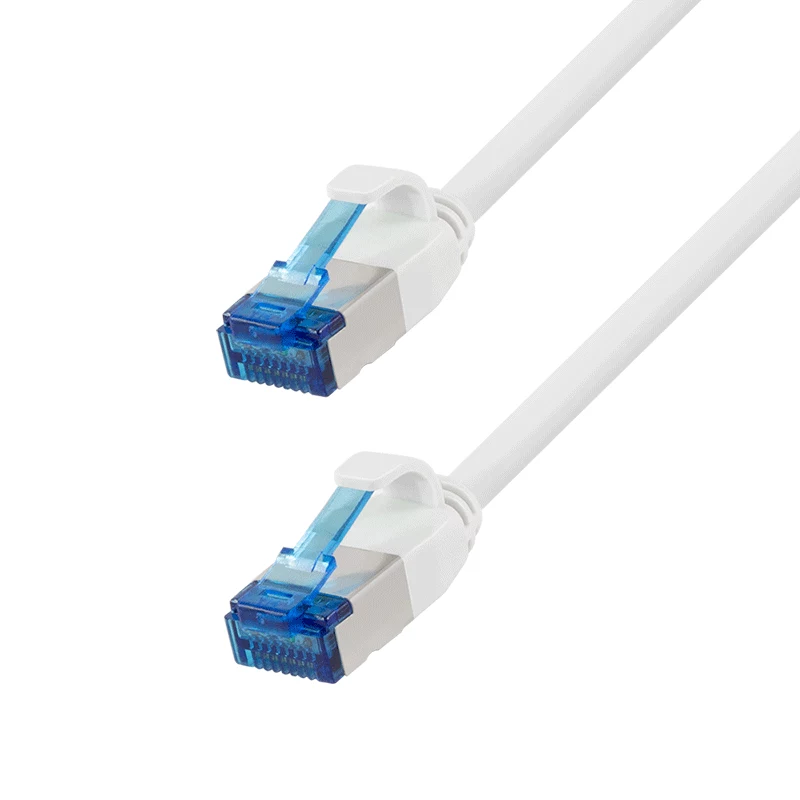

LogiLink Cablu patch Cat.6A Slim S/FTP LSZH, alb, 20 m

In a busy data center, a technician needs a reliable 20-meter link between a patch panel and a high-density switch. This LogiLink Cat.6A Slim S/FTP patch cable delivers 10 Gigabit performance in a slender, LSZH jacket that simplifies cable management and improves airflow. Ideal for professional network installations where space is tight and safety standards are strict.

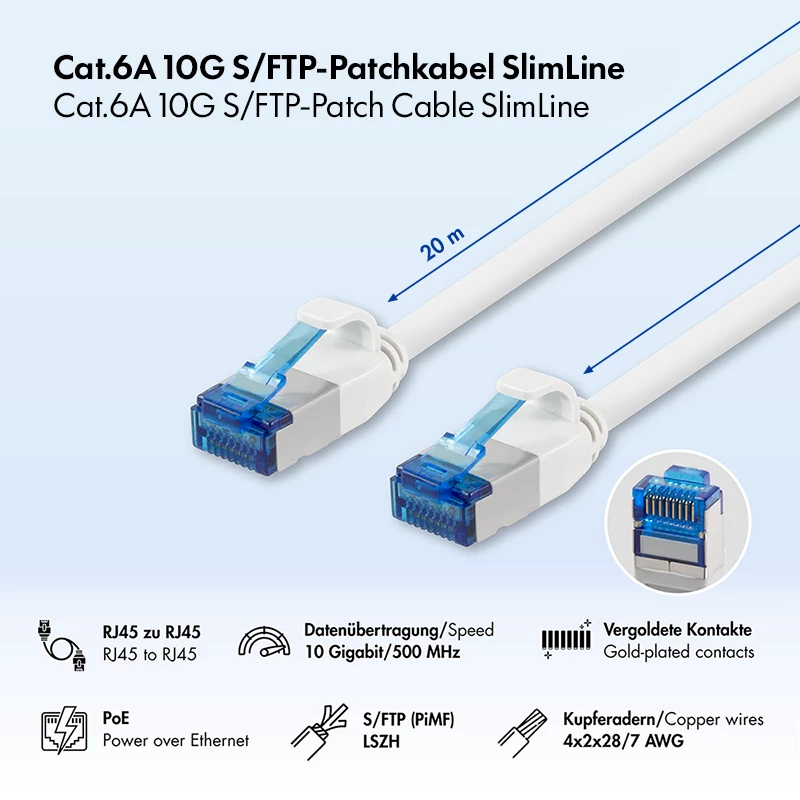

Key specifications

• Category: Cat.6A (500 MHz bandwidth)
• Shielding: S/FTP (PiMF) – each pair foiled, overall braid
• Length: 20 meters
• Colour: White
• Conductor: Copper, AWG 28/7 stranded
• Connectors: RJ45 male to RJ45 male, gold-plated (50µ)
• Jacket: LSZH (Low Smoke Zero Halogen)
• Outer diameter: approx. 3.8 mm (SlimLine design)
• Wiring: TIA/EIA 568B
• Boot: Molded, snagless

Why choose it

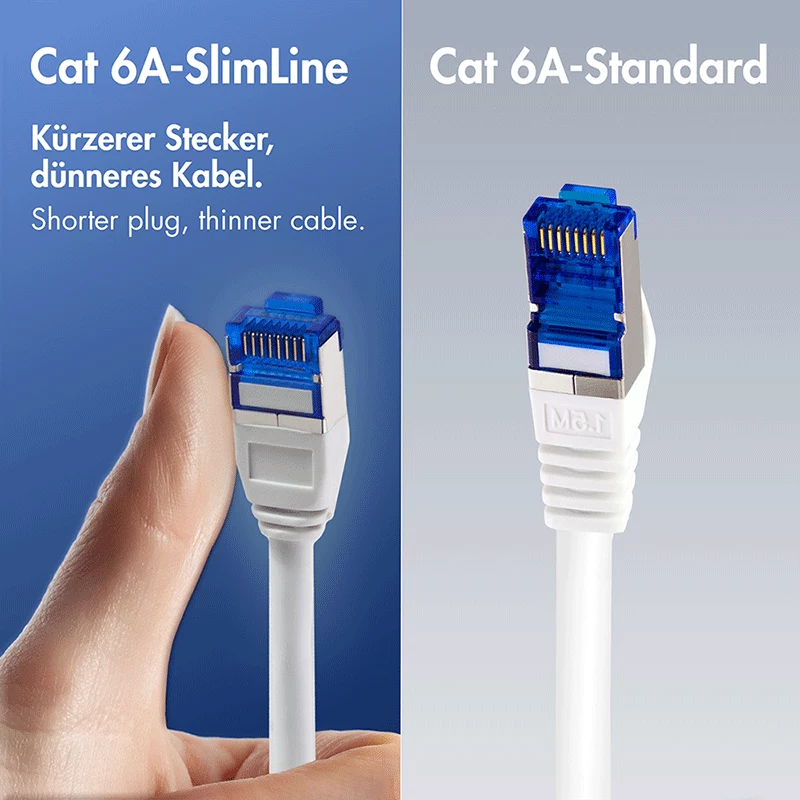

The SlimLine construction reduces cable bulk by up to 25% compared to standard Cat.6A cables, making it easier to route through cable managers and behind equipment. The S/FTP shielding provides excellent immunity to alien crosstalk, ensuring stable 10GBASE-T performance even in dense bundles. The LSZH jacket emits low smoke and no toxic halogens in case of fire, meeting strict safety requirements for public buildings and data centers.

Ideal use cases

• High-density data center patching
• 10 Gigabit Ethernet connections in enterprise networks
• Structured cabling in offices with LSZH mandates
• Connecting servers, switches, and patch panels
• Professional AV and broadcast installations

Good to know

This cable is fully backward compatible with Cat.5e and Cat.6 networks. The gold-plated contacts resist corrosion and ensure reliable connectivity over repeated insertions. The white colour blends seamlessly into modern interiors or can be easily identified in cable runs. Each cable is individually tested to meet Cat.6A performance standards.
