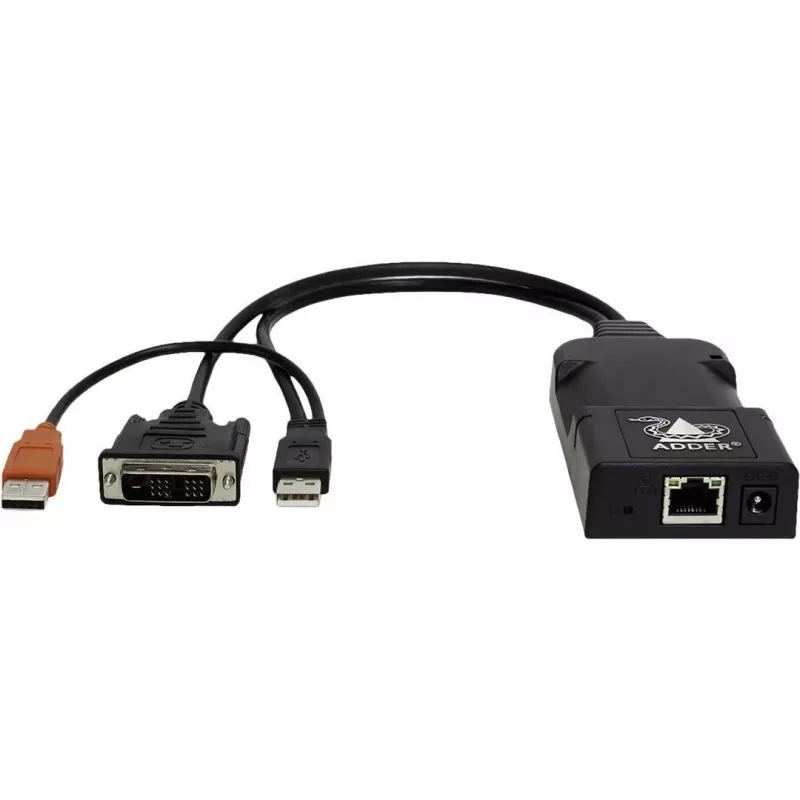

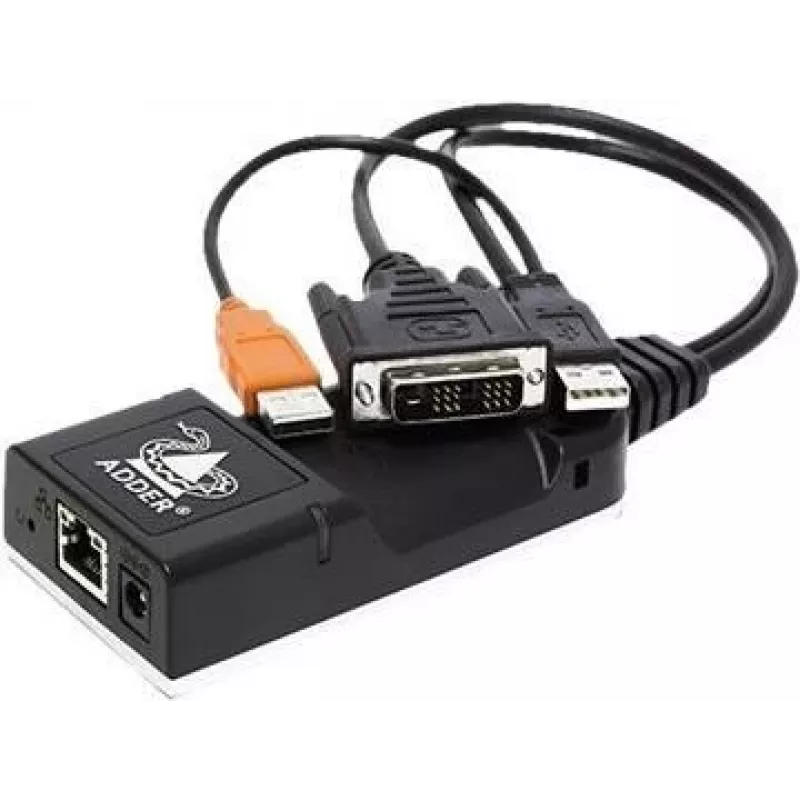

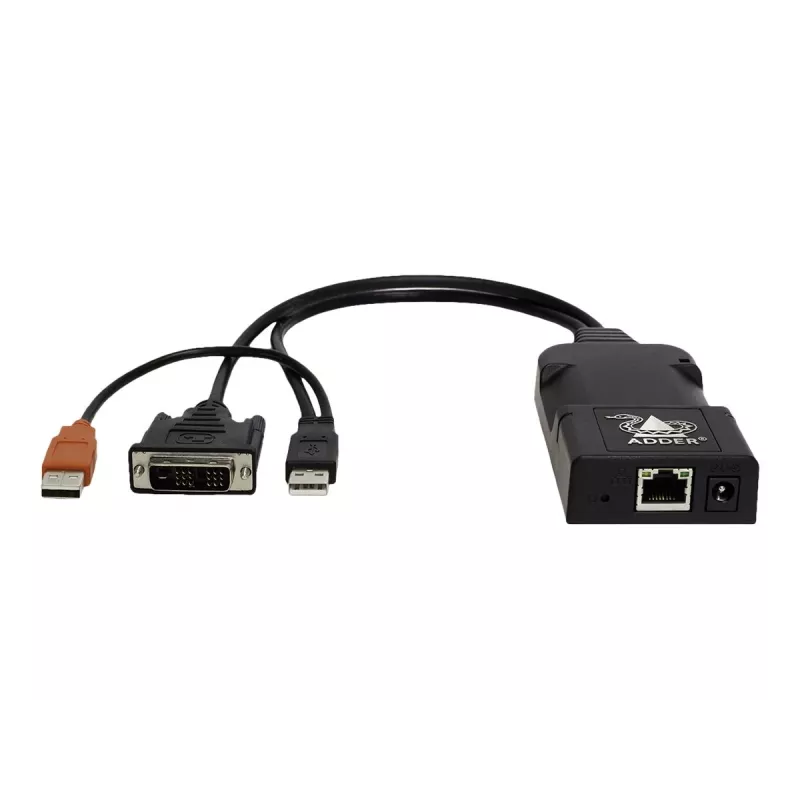

Extender KVM Adder ADDERLink CAM DVI prin IP (ALIF101T-DVI)

The ADDERLink CAM DVI is a high-performance KVM extender that transmits DVI video, USB 2.0, and audio over IP networks with visually lossless quality and near-zero latency. It supports resolutions up to 1920 x 1200 at 60Hz and extends signals over standard Gigabit Ethernet, making it ideal for control rooms, broadcast, and industrial applications.

Advantages

Pixel-perfect DVI video with AES-128 encryption and RSA-2048 authentication ensures secure, real-time access to remote computers. The fanless, compact design allows silent operation in noise-sensitive environments, while USB 2.0 support enables connection of keyboards, mice, and other peripherals.

Suitable for

• Control rooms requiring secure, low-latency KVM extension
• Broadcast and post-production facilities
• Industrial and medical environments with strict noise constraints
• IT administrators managing servers over IP networks

Key specifications

• Video Input: 1 x DVI-I (Single Link)
• Max Resolution: 1920 x 1200 @ 60Hz
• USB Support: USB 2.0 (HID and transparent)
• Audio: Stereo line in/out (3.5mm jacks)
• Network: 1 x RJ45 Gigabit Ethernet
• Extension: IP-based, up to 100m per hop, unlimited over IP
• Security: AES 128-bit encryption, RSA 2048-bit authentication
• Power: External 5V DC, 2.5A

Recommendations

For optimal performance, use Cat5e or better cabling and ensure network switches support Gigabit Ethernet. Pair with ADDERLink INFINITY Manager for centralized management.
