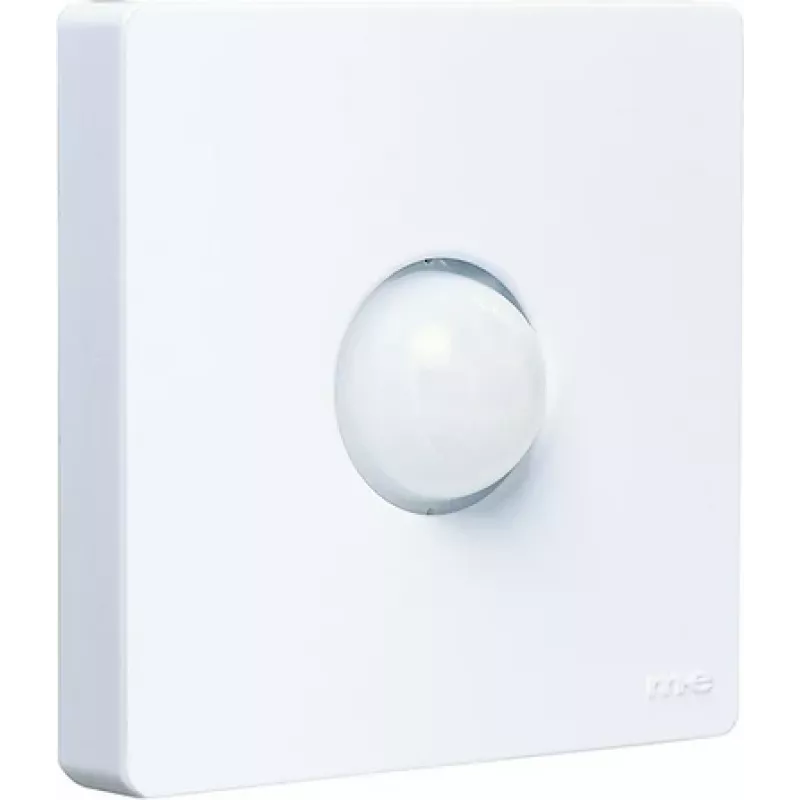

Detector de mișcare M-E MODERN-ELECTRONICS 41443, 90°, alb, IP54

Detect movement with a 90° field of view and up to 8 m range using passive infrared technology. The M-E MODERN-ELECTRONICS 41443 is a wall-mounted motion detector for indoor and protected outdoor areas, with adjustable time delay and twilight sensitivity.

Overview

The 41443 motion detector operates on 230V AC and can switch loads up to 1000 W resistive or 300 W inductive. Its IP54 rating protects against dust and water splashes, and the UV-resistant plastic housing ensures durability.

What stands out

• 90° detection angle and 8 m range
• Adjustable time delay from approx. 10 seconds to 7 minutes
• Twilight sensor adjustable from approx. 3 to 2000 lux
• IP54 protection for outdoor use

Technical details

• Detection technology: Passive Infrared (PIR)
• Operating voltage: 230V AC, 50Hz
• Max. switching capacity: 1000 W resistive, 300 W inductive
• Recommended mounting height: 1.8 - 2.5 m
• Material: UV-resistant plastic
• Colour: White

Our verdict

A reliable motion detector with flexible settings for lighting and security applications.
