Cutie de suprafață Equip 2-Port Cat.6 235212

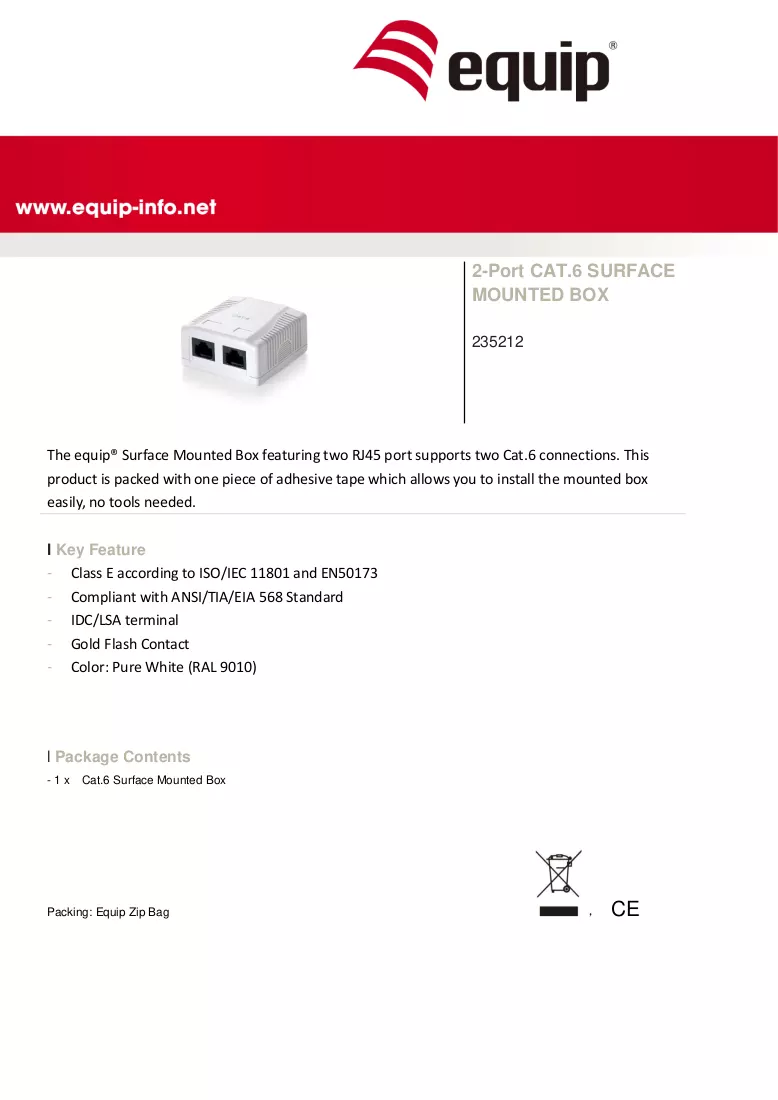

The equip® Surface Mounted Box 2-Port Cat.6 (model 235212) is a compact external outlet for network cabling featuring two RJ45 ports. It supports Cat.6 connections and is supplied with one adhesive tape strip for tool-free installation. The enclosure measures approximately 59 mm wide, 29.5 mm deep and 61 mm high and comes in white finish suitable for visible installations.

Advantages

This surface mount box provides a simple way to terminate two Ethernet lines where in-wall installation is impractical. The included adhesive tape simplifies mounting on flat surfaces without drilling, and the plastic housing offers a low-profile, unobtrusive appearance. Its compatibility with Cat.6 cabling ensures support for higher-speed networks while maintaining backward compatibility with Cat.5e.

Suitable for

• Home network extensions
• Small office patch points
• Temporary or rented spaces where drilling is not allowed
• Wall-mounted VoIP phones or networked devices

Key specifications

• Brand: EQUIP
• Model (MPN): 235212
• Ports: 2 × RJ45
• Cable standard: Cat.6 (backward compatible with Cat.5e)
• Dimensions (W × D × H): 59 mm × 29.5 mm × 61 mm
• Color: White
• Weight: 0.062 kg

How to use

Prepare the network cables by terminating them with RJ45 plugs or punching them down to the module as appropriate. Clean and dry the target surface, peel off the backing from the supplied adhesive tape, and press the box firmly in place. Route the cables into the enclosure, connect to the RJ45 ports and verify link status using a network tester. For more permanent installation, consider securing the unit with screws in addition to the adhesive.

Recommendations

Install the surface mount box on a clean, flat surface and allow the adhesive to set before applying strain to connected cables. For long-term or high-traffic installations, use mechanical fasteners in addition to the supplied tape to ensure stable mounting.
