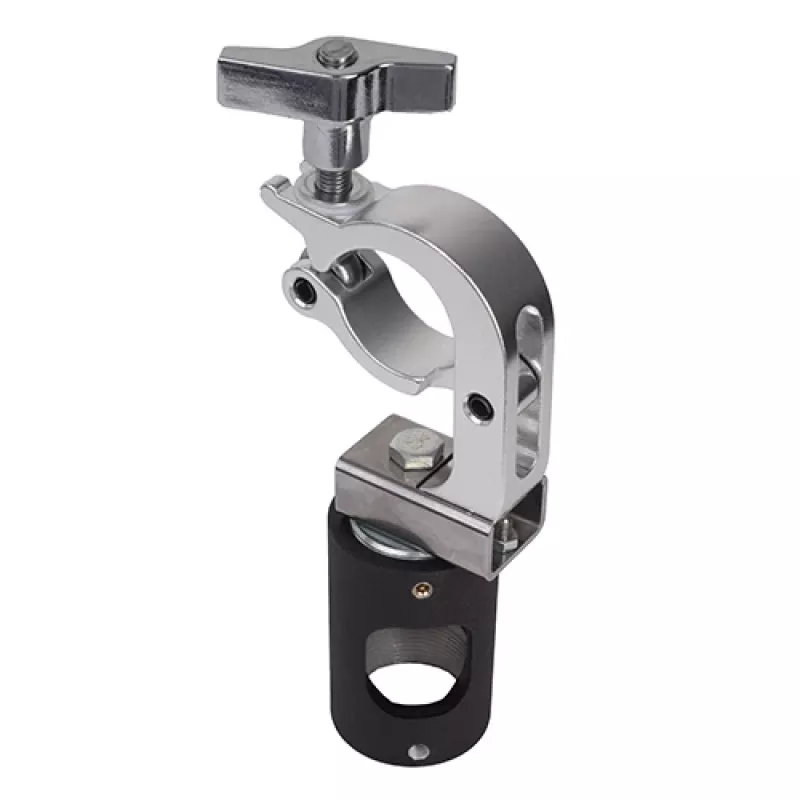

Clemă pentru traversă Chief CMS380

The Chief Truss Clamp Chief CMS380 adapts 1.5" NPT threaded extension columns to a 2" (51 mm) tube truss for temporary projection and flat panel installations. Designed for rental and staging use, the clamp is compatible with Chief CMS columns, accessories, projector and flat panel mounts and provides a secure connection for onsite rigging.

Advantages

The trigger-style clamp enables one-person installation and the unit includes a cable port for neat cable exit. It has a safe working load of 250 lbs (113.4 kg) and a compact, durable design in black and silver that integrates with Chief mounting systems.

Suitable for

• Temporary projection setups on 2" tube truss
• Mounting flat panels for events and trade shows
• Rental and staging rigging where quick install/removal is required

Key specifications

• Model: Chief CMS380
• Compatible with: Chief CMS columns, accessories, projector & flat panel mounts
• Connection: Adapts 1.5" NPT threaded extension columns to 2" (51 mm) tube truss
• Safe working load: 250 lbs (113.4 kg)
• Dimensions (W×D×H): 104 × 60 × 259 mm
• Finish: Black and silver
• Pack quantity: 1

How to use

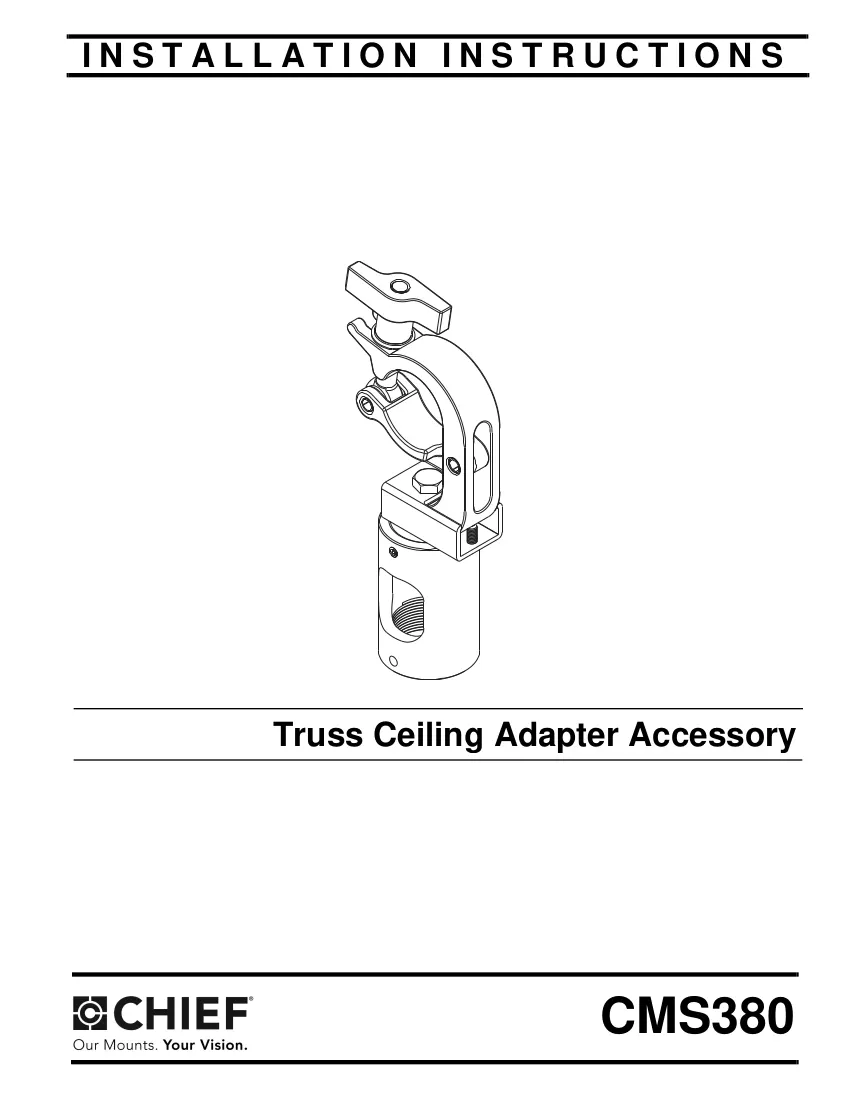

Position the clamp around the 2" (51 mm) tube truss and engage the trigger-style mechanism to secure the unit. Attach the 1.5" NPT threaded extension column to the clamp according to Chief column mounting instructions. Route cables through the cable port for a clean exit and verify the connection and load capacity before operation.

Recommendations

Ensure the installed load does not exceed the safe working load of 250 lbs (113.4 kg). Inspect the clamp and attachment points before each use and follow local rigging and safety standards for temporary event installations.
