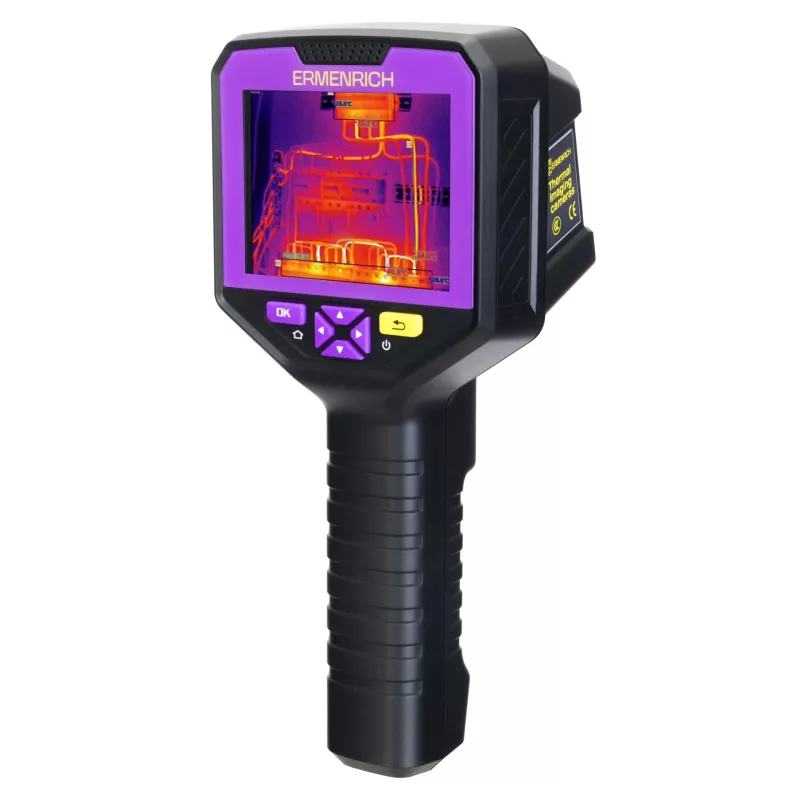

Cameră termică Ermenrich Seek TV90

The Ermenrich Seek TV90 is a high-performance thermal imaging camera designed for professional diagnostics, building inspection, and electrical maintenance. With a 256x192 infrared sensor and a wide temperature range from -20°C to +550°C, it delivers precise thermal measurements and clear imagery. The 3.5-inch display with 640x480 resolution ensures easy viewing, while the integrated 2 MP digital camera and multiple image modes (thermal, visual, fusion) provide comprehensive analysis. Built to withstand tough environments with IP54 rating and 2-meter drop resistance, the TV90 is a reliable tool for any professional.

Advantages

High-resolution thermal imaging with 256x192 pixels, wide temperature range, and excellent thermal sensitivity (<50mK) for accurate diagnostics. The 3.5-inch display and 2 MP visual camera enhance usability. With 7 color palettes, adjustable emissivity, and 16 GB internal storage, it offers flexibility and convenience. The rechargeable Li-ion battery provides up to 9 hours of operation, and the IP54 rating ensures durability in challenging conditions.

Suitable for

• Building diagnostics and energy audits
• Electrical and mechanical inspections
• HVAC system troubleshooting
• Industrial maintenance and quality control
• Fire prevention and safety checks

Key specifications

• Infrared Resolution: 256x192 pixels
• Temperature Range: -20°C to +550°C (-4°F to +1022°F)
• Accuracy: ±2°C or ±2% (whichever greater)
• Thermal Sensitivity (NETD): <50mK (@25°C, F#1.0)
• Frame Rate: 25 Hz
• Field of View: 56° x 42°
• Display: 3.5-inch, 640x480 pixels
• Digital Camera: 2 MP
• Image Modes: Thermal, Visual, Fusion (Picture-in-Picture)
• Color Palettes: 7 (White Hot, Black Hot, Iron Red, Rainbow, Rainbow HC, Red Hot, Hot Spot)
• Emissivity Adjustment: 0.01 to 1.00
• Internal Storage: 16 GB
• Connectivity: USB-C
• Battery: Rechargeable Li-ion, up to 9 hours
• IP Rating: IP54
• Drop Test: 2 meters
• Spectral Range: 8-14 µm
• Focus: Fixed Focus

Recommendations

For optimal results, ensure the lens is clean and the camera is calibrated. Use the appropriate color palette for your application. The device is not designed for underwater use; avoid prolonged exposure to rain. Store in a dry, cool place when not in use.
