Cablu HDMI LogiLink CH0102 3m

The LogiLink CH0102 HDMI Cable (3 m) is a High Speed with Ethernet connection cable with HDMI Type A connectors on both ends. It transmits audio, video and data and supports HDMI 2.0 features including resolutions up to 3840x2160 at 60 Hz, Ultra HD/4K, 3D and Audio Return Channel (ARC). Gold-plated contacts improve signal reliability, and the black jacket provides standard protection for home and office installations.

Advantages

The cable offers a data transfer rate up to 14.4 Gbit/s and compatibility with HDMI 2.0 features such as 4K@60Hz and 3D. Gold-plated connectors reduce contact resistance for stable signal transmission. The 3 m length provides flexibility for connecting TVs, projectors or consoles without needing adapters, and the integrated Ethernet support allows networked HDMI devices to share a connection.

Suitable for

• Connecting TVs and Ultra HD displays to media players or set-top boxes
• Linking gaming consoles to monitors or TVs
• Connecting projectors in living rooms or meeting rooms
• Audio systems using HDMI ARC-compatible receivers

Key specifications

• Manufacturer: LOGILINK
• Model/MPN: CH0102
• EAN: 4052792064605
• Cable length: 3 m
• Connectors: HDMI Type A – HDMI Type A (Standard)
• HDMI version: 2.0
• Maximum resolution: 3840 x 2160 @ 60 Hz
• Data transfer rate: up to 14.4 Gbit/s
• Features: High Speed with Ethernet, 3D, ARC
• Colour: Black

How to use

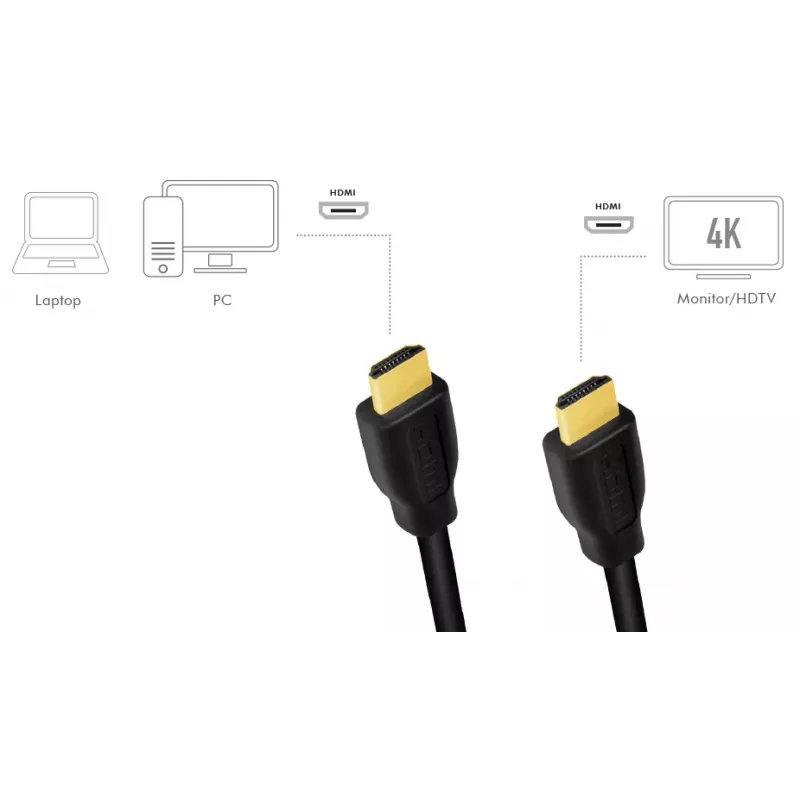

Connect one HDMI Type A end to the HDMI output of your source device (for example a Blu-ray player, console or set-top box) and the other end to the HDMI input of your display or receiver. Ensure both devices are powered on and set the display input to the corresponding HDMI port. For ARC functionality, connect the cable to the HDMI ARC port on both the TV and the AV receiver and enable ARC in device settings if required.

Recommendations

The cable is suitable for indoor use with consumer electronics. Avoid sharp bends and excessive pulling; route the cable away from high-interference power lines. For guaranteed 4K@60Hz and ARC operation, use HDMI ports labelled HDMI 2.0/ARC on your devices and keep firmware up to date.
