Cablu DSIT DANICOM CAT6 UTP 305m Solid Core - LSZH (Dca)

When fire safety and signal integrity are non-negotiable, the DSIT DANICOM CAT6 UTP 305m Solid Core Cable stands apart. Unlike ordinary PVC-jacketed cables, this reel features a Low Smoke Zero Halogen (LSZH) sheath with a Dca CPR classification, making it suitable for public buildings, offices, and industrial environments with strict fire regulations. The solid bare copper conductors (23 AWG) provide superior performance for permanent links, while the unshielded twisted pair (UTP) design keeps installation simple and cost-effective. With a full 305-meter pull-box, it’s ready for large-scale horizontal cabling runs.

Highlights

• CAT6 performance up to 250 MHz, supporting Gigabit Ethernet (1000BASE-T)
• Solid bare copper conductors (23 AWG) for reliable permanent installations
• LSZH jacket with CPR Euroclass Dca – low smoke, zero halogen, flame retardant
• Unshielded twisted pair (UTP) construction for easy termination and flexibility

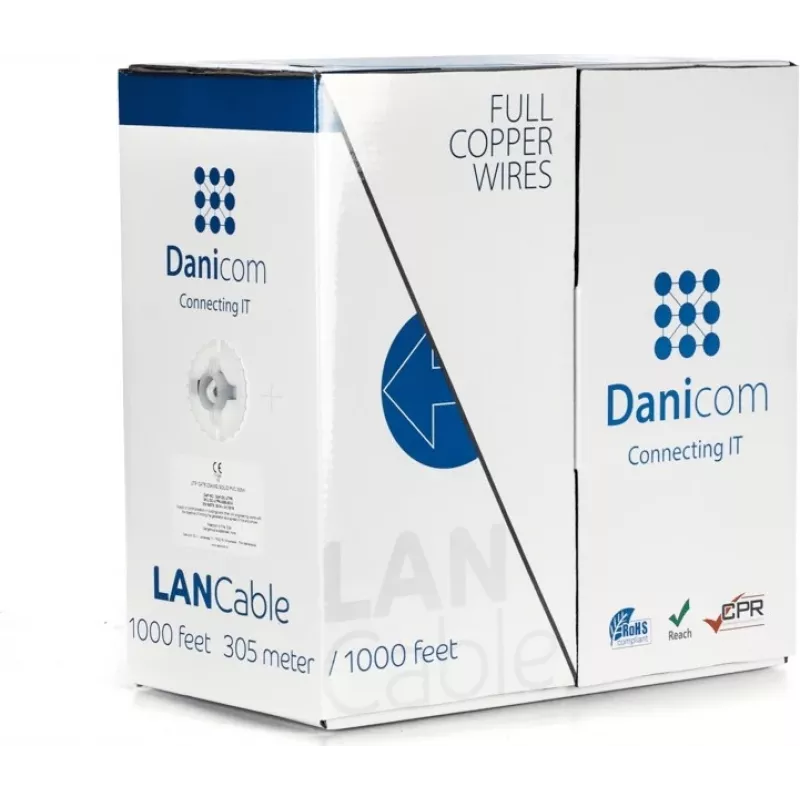

• 305 m (1000 ft) reel in a convenient pull-box for efficient deployment
• Compliant with ISO/IEC 11801, EN 50173, and TIA/EIA-568-C.2

In daily use

Installers will appreciate the smooth, consistent jacket that strips cleanly and resists kinking during pulls. The solid copper conductors hold their shape in punch-down blocks and keystone jacks, ensuring stable connections over the life of the installation. Because the cable is unshielded, no grounding is required, reducing labor time and potential errors. The LSZH sheath emits very low smoke and no halogen gases in the event of a fire, protecting both people and equipment.

Full specifications

• Cable type: Network installation cable
• Category: CAT6
• Shielding: UTP (Unshielded Twisted Pair)
• Conductor type: Solid core
• Length: 305 m
• Jacket material: LSZH (Low Smoke Zero Halogen)
• CPR fire class: Dca
• Number of pairs: 4
• Max bandwidth: 250 MHz
• Max data transfer rate: 1 Gbps
• Application environment: Indoor
• Conductor material: Bare copper
• Wire gauge: 23 AWG
• Standards compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Packaging: Reel / Pull-box

Final note

For projects where safety and performance are equally critical, this LSZH Dca-rated CAT6 cable delivers both without compromise.
