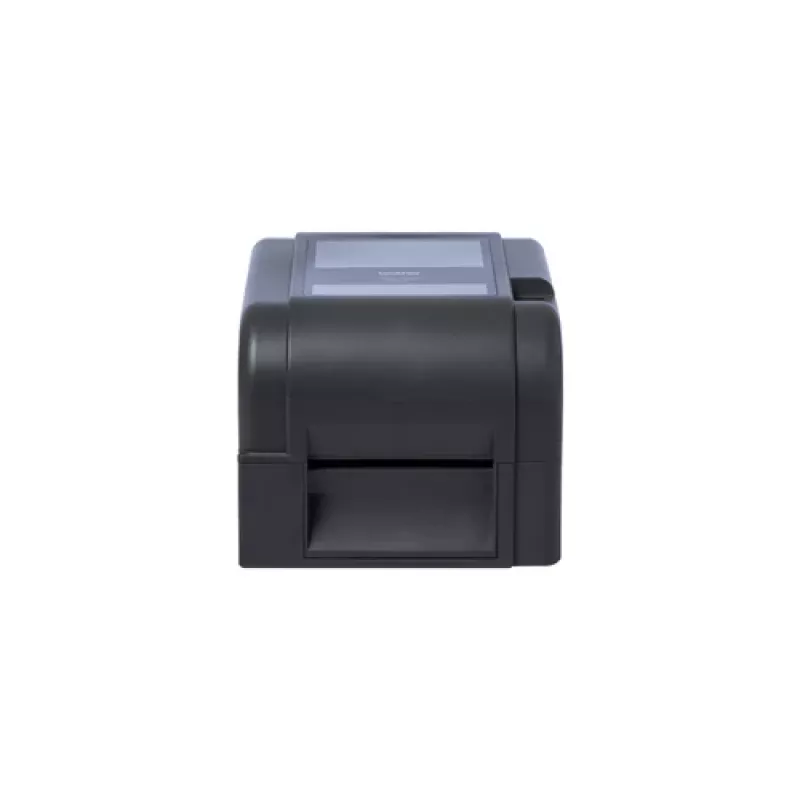

BROTHER TD-4520TNF2

High-volume labelling often slows down with printers that can't keep pace or handle varied media. The Brother TD-4520TNF2 solves this with fast, precise thermal transfer printing for industrial and logistics environments.

Who is it for

Warehouse managers, manufacturing supervisors, and logistics coordinators who need durable labels for shipping, inventory, and compliance. It suits businesses printing barcodes, tags, and receipts at scale.

Main features

• Thermal transfer technology with 203 dpi resolution for crisp text and barcodes
• Print speed up to 6 ips (152 mm/sec) to handle high-volume jobs
• Wide 4.09-inch print width and long 118-inch print length for diverse label sizes
• Integrated auto cutter for clean, hands-free label separation
• Multiple connectivity: USB 2.0, RS-232C serial, Ethernet, and Wi-Fi
• 2.3-inch color LCD for easy setup and monitoring
• Supports ZPL II, CPCL, and BPL emulations for seamless integration
• Comes with Bartender UltraLite Edition software for label design

Specifications

• Print technology: Thermal Transfer
• Maximum resolution: 203 x 203 DPI
• Maximum print width: 4.09 inches (104 mm)
• Maximum print length: 118 inches (3000 mm)
• Connectivity: USB 2.0, RS-232C Serial, Ethernet LAN, Wi-Fi
• Memory: 128 MB SDRAM, 128 MB Flash
• Media types: Roll, fanfold, die-cut, continuous, tag, receipt
• Media sensors: Gap, black mark, continuous
• Ribbon core diameter: 1 inch (25.4 mm), max ribbon length 300 m
• Power supply: Internal AC 100-240V

Tips

Use genuine Brother ribbons and media for optimal print quality and longevity. Position the printer near a network port or use Wi-Fi for flexible placement. Regularly clean the printhead to maintain performance.
