Accesoriu rack INTER-TECH (88887195)

18" telescopic rails for IPC-cases designed for 19" rack-mounted IPC enclosures. These rails provide adjustable extraction depth to accommodate different installation requirements and support a maximum load of 30 kg. The product corresponds to a 1U rack accessory with a silver finish and compact dimensions suitable for standard server racks.

Advantages

Telescopic design allows sliding access to the mounted IPC-case while keeping a low-profile 1U form factor. Adjustable extraction depth (approx. 350–450 mm depending on rack installation) provides flexibility for various enclosure depths. Constructed to support up to 30 kg, ensuring stable operation of installed equipment and a silver finish that matches common rack aesthetics.

Suitable for

• Mounting 19" IPC-cases in standard 1U rack spaces
• Server rooms and industrial control cabinets requiring occasional slide-out access
• Setups where compact, low-profile rack accessories are needed

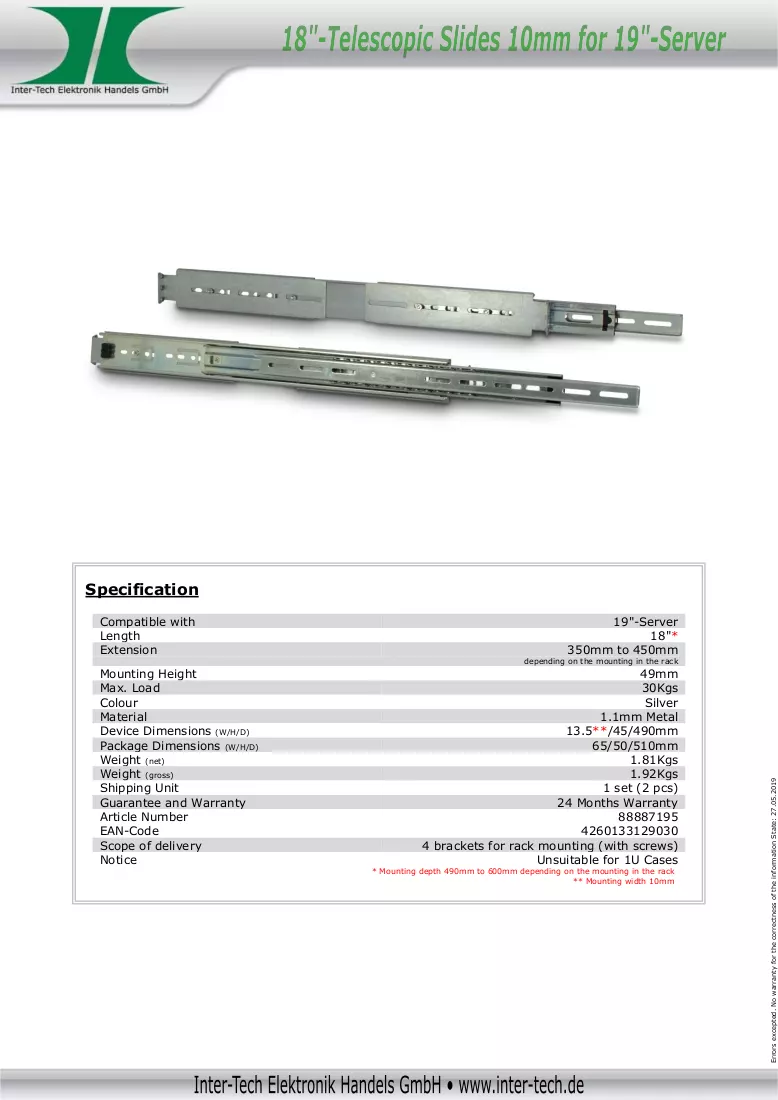

Key specifications

• Brand: INTER-TECH
• Model / MPN: 88887195
• EAN: 4260133129030
• Rack size compatibility: 19"
• Form factor: 1U
• Length: 45.7 cm
• Width: 135 mm
• Depth: 45 mm
• Maximum extraction depth: ~350–450 mm (depending on installation)
• Maximum load capacity: 30 kg

How to use

Install the rails into the 19" rack at the intended 1U position following standard rack-mount procedures. Adjust the telescopic sections to the required extraction depth (within the 350–450 mm range) before securing the IPC-case. Slide the enclosure in and fasten it to the rails to ensure stable mounting. Use the telescopic function to pull the IPC-case out for maintenance or cabling and push it back in when finished.

Recommendations

Ensure the mounted equipment does not exceed the 30 kg load limit and verify sufficient clearance within the rack for the chosen extraction depth. Regularly check mounting screws and rail mechanisms for tightness and wear to maintain safe operation.
