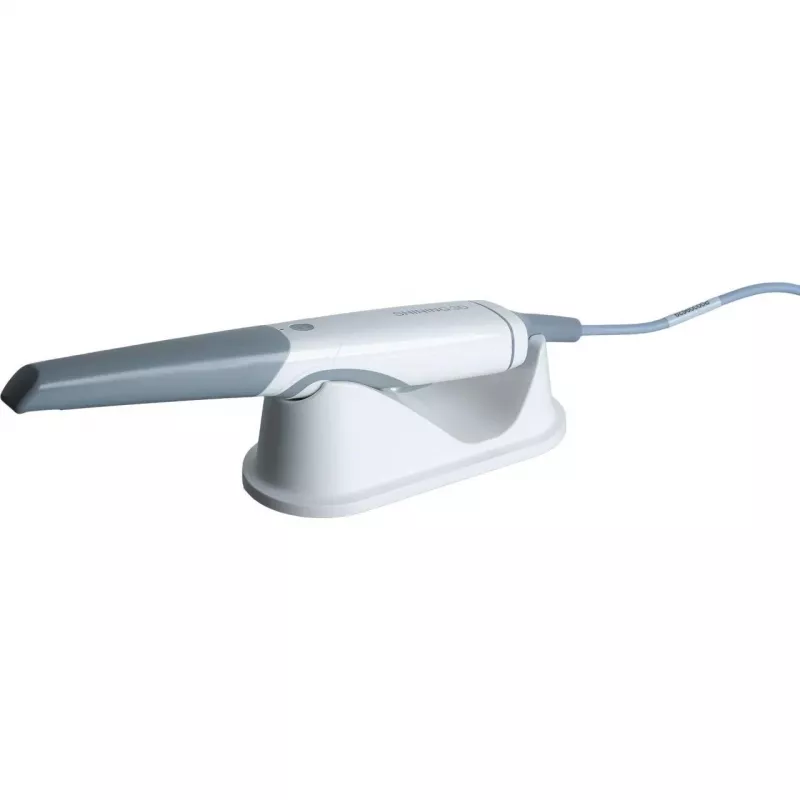

SHINING 3D Aoralscan 3 Scanner dentar (C3143)

The SHINING 3D Aoralscan 3 is a portable handheld 3D dental scanner that delivers true-color intraoral scanning with 10 μm accuracy. Its structured light technology captures full arches in approximately 25 seconds, enabling fast, precise digital impressions for restorative, orthodontic, and implant workflows.

Advantages

The scanner features a built-in heater to prevent fogging, motion sensing for hands-free operation, and autoclavable tips for infection control. With a compact 16 mm x 12 mm standard tip and a smaller 12 mm x 9 mm option, it handles both full-arch and difficult-to-reach areas. Output formats include STL, PLY, and OBJ for seamless integration with CAD/CAM systems.

Suitable for

• Dental clinics adopting digital impression technology
• Orthodontic practices requiring fast full-arch scans
• Implantology and restorative dentistry workflows
• Dental labs seeking accurate color data for prosthetics

Key specifications

• Scanning technology: Optical, structured light
• Accuracy: 10 μm (ISO 12836)
• Full arch scan speed: approx. 25 seconds
• Field of view: 16 mm x 12 mm x 22 mm
• Scan depth: -2 mm to 20 mm
• Light source: LED
• Connectivity: USB 3.0, 2 m cable
• Color scanning: True color
• Anti-fogging: Built-in heater
• Motion sensing: Yes (hands-free)
• Autoclavable tips: Up to 100+ cycles
• Software: Aoralscan Software, Cloud Platform

Recommendations

For optimal performance, use a Windows 10/11 (64-bit) PC with Intel Core i7-8700 or higher, 16 GB RAM, and NVIDIA RTX 2060 (6 GB VRAM) or better.
