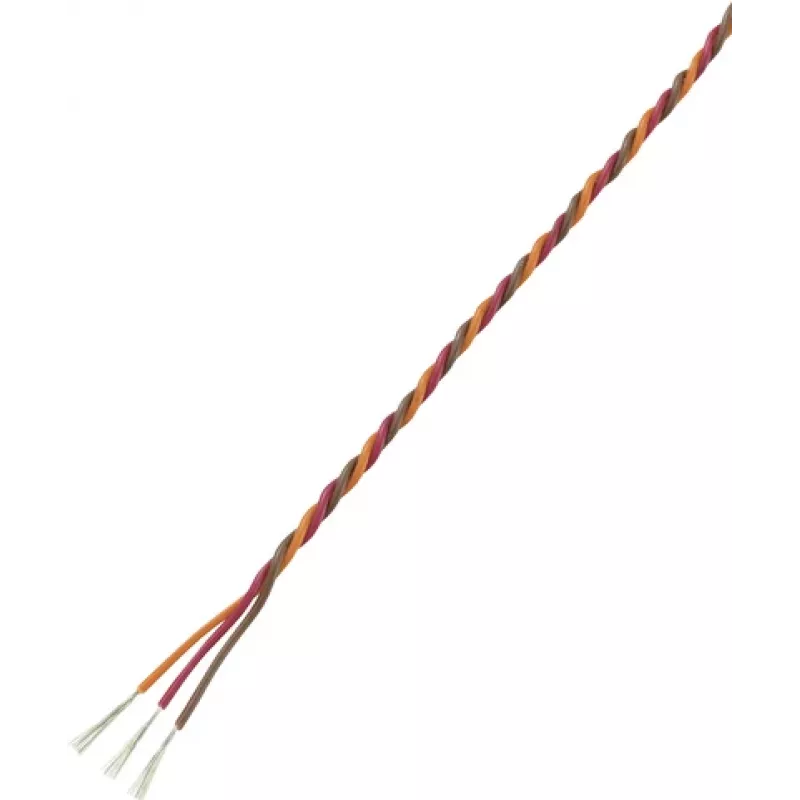

Cablu servo Reely 3 x 0,30 mm², 5 m SH1998C135C

RC hobbyists and electronics enthusiasts often need reliable, flexible wire for servo connections and internal wiring. This Reely servo wire provides three colour-coded cores, each with a 0.30 mm² cross-section, in a 5-metre length. The fine-stranded tinned copper conductors and PVC insulation ensure easy soldering and routing in tight model spaces.

Key specifications

• Wire type: Servo wire (litz wire)
• Number of cores: 3
• Core cross-section: 0.30 mm²
• Length: 5 m
• Conductor material: Tinned copper
• Insulation material: PVC
• Core colours: Brown, red, orange
• Nominal voltage: 300 V
• Temperature range: -30 to +80 °C
• Outer diameter per core: 1.3 mm

Why choose it

The fine-stranded construction provides high flexibility, making it easy to route through narrow channels in model aircraft, cars, or boats. The tinned copper conductors resist corrosion and solder readily. Colour coding simplifies identification of signal, power, and ground lines.

Ideal use cases

• Servo extension leads
• Receiver and ESC wiring
• General low-voltage electronics projects

Good to know

The wire is supplied as a continuous 5-metre length, allowing you to cut it to the exact size needed for your project.
